Description:

BP-SAH weighbridge scale with modules that can be coupled on the ground or flush-mounted up to 26 metres. Mixed metal and concrete modules, with concrete already poured from the factory. Economical civil works

Capacities
Dimensions


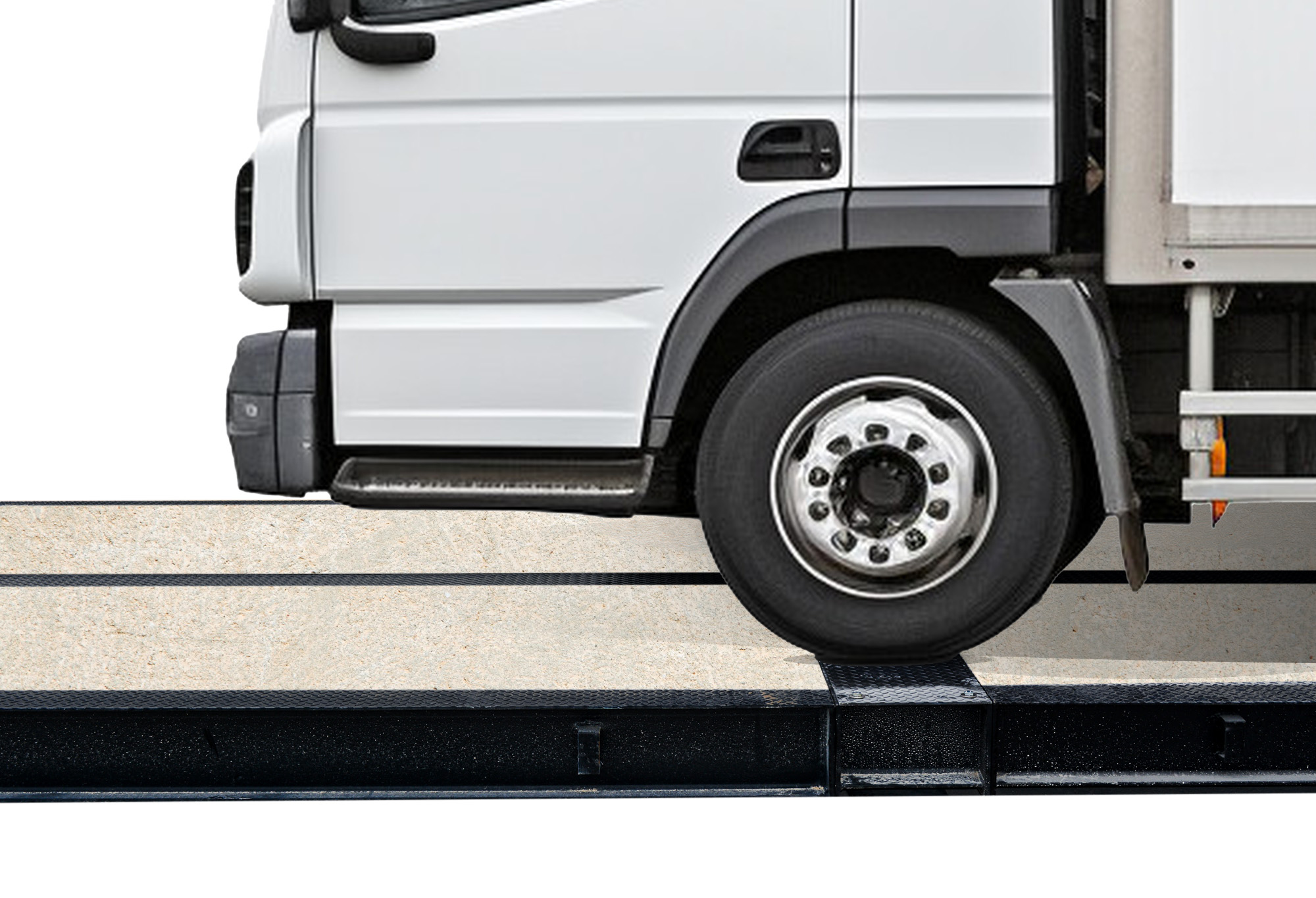

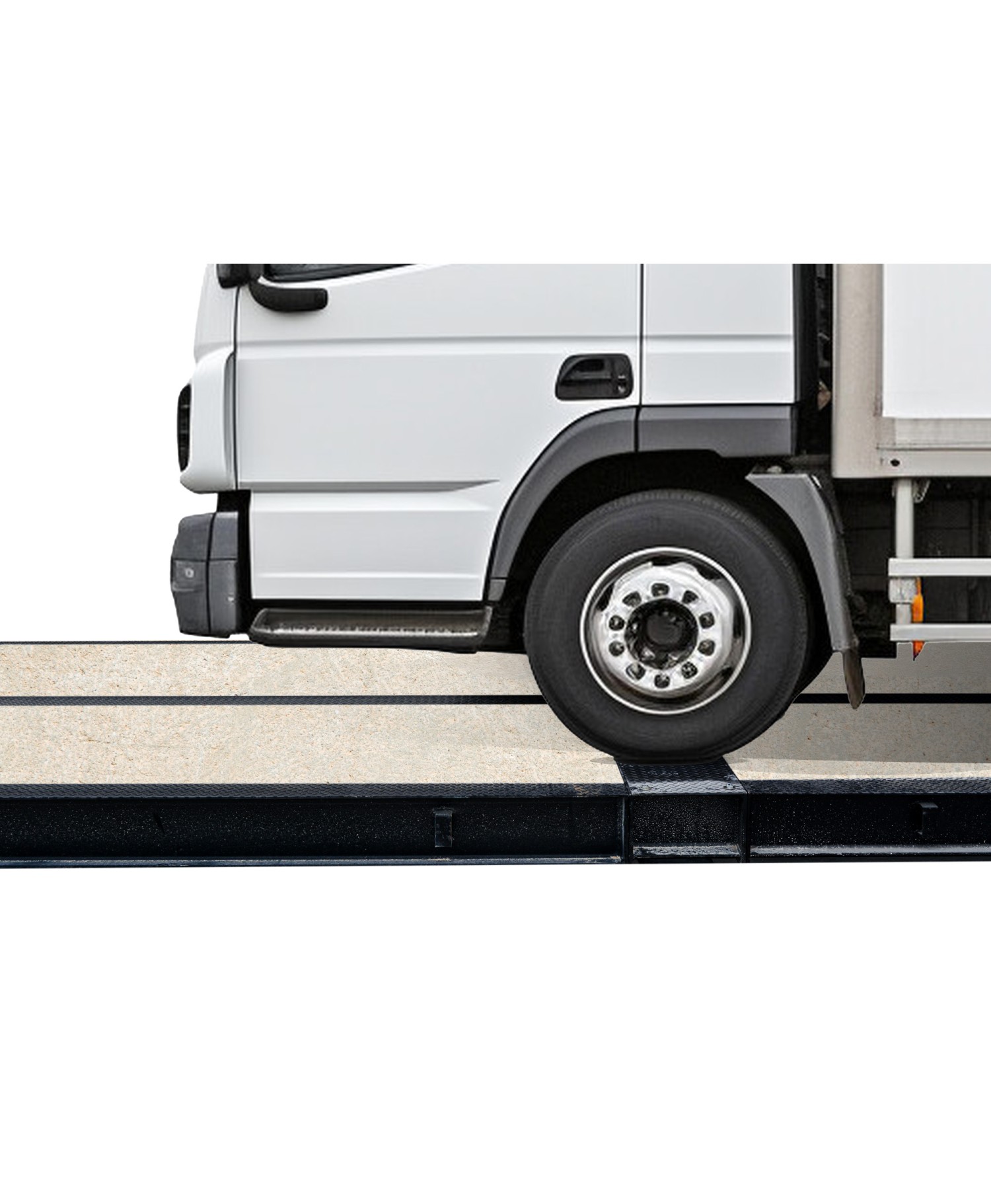

WEIGHBRIDGES BP-SAH

BP-SAH

The BP-SAH Industrial Bridge Scale combines efficiency and versatility. With a modular design and high quality materials, it guarantees optimum performance.

The BP-SAH offers a significant advantage thanksto its modular design of mixed metal and concrete modules, already poured at the factory. This feature eliminates waiting times, allowing users to start work immediately, thus maximising process efficiency.

Flexibility and adaptability are other outstanding qualities of this scale. In addition, its floorstanding or recessed design and standard width of 1.5 metres simplify transport and installation, ensur ing smooth and ef f icient logi s t ic s .

Its concrete surface and safety features make it essential in a variety of industrial applications.

General

Time optimisation. The BP-SAH industrial weighbridge with mixed metal and concrete modules already poured in the factory, designed for maximum efficiency and performance from the very first moment, as they eliminate the typical waiting time for pouring and setting, allowing you to start working immediately.

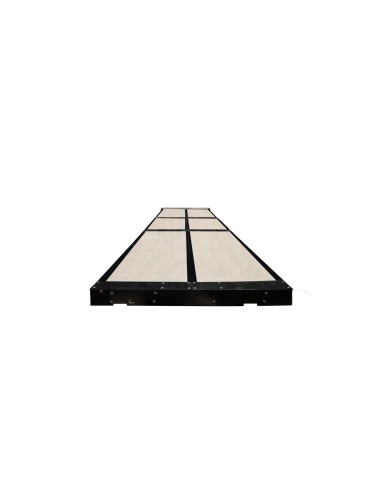

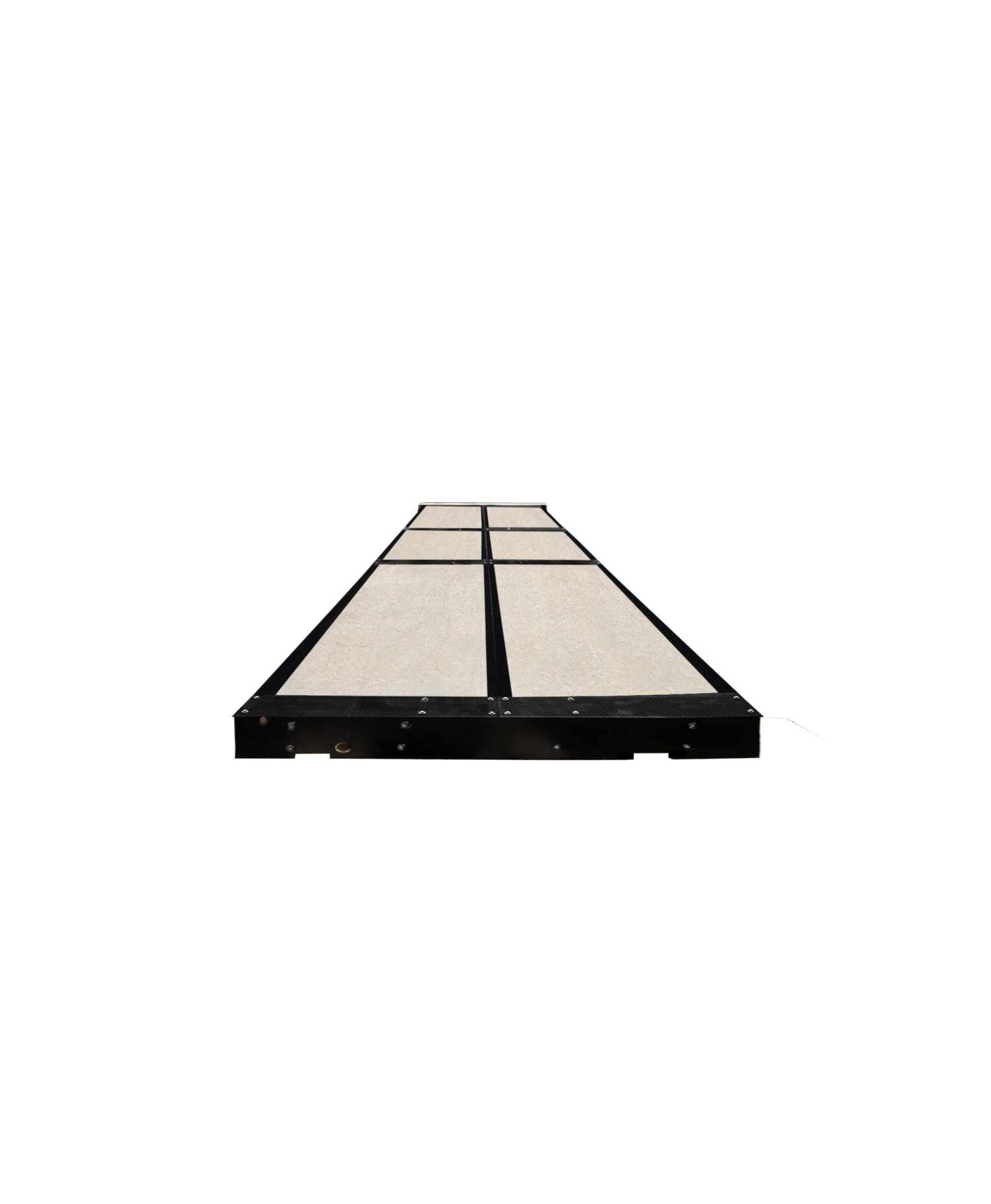

Flexibility and adaptability. Modules that can be bolted to transversal structures, where the load cells are located, for versatile platforms of 12, 14, 16 and 18 metres in length, with the possibility of adapting other lengths according to your specific needs. Whether the model is above or below ground, each module has a standard width of 1.5 metres, which simplifies and reduces transport costs.

From unloading by crane to the use of high-capacity forklifts, we have thought of every detail to make logistics smooth and efficient.

State-of-the-art design and safety. Our bridges are designed using state-of-the-art structural calculation software, combining hotrolled sections (type IPE, S275JR), reinforced (B500S) and high quality concrete (H-300). This allows us to reach a total height of only ~240 mm, achieving a rolling height of ~290 mm and a robustness that meets the structural requirements of the concrete and metrological requirements of our cells, complying with DIN 8119 for road vehicles.

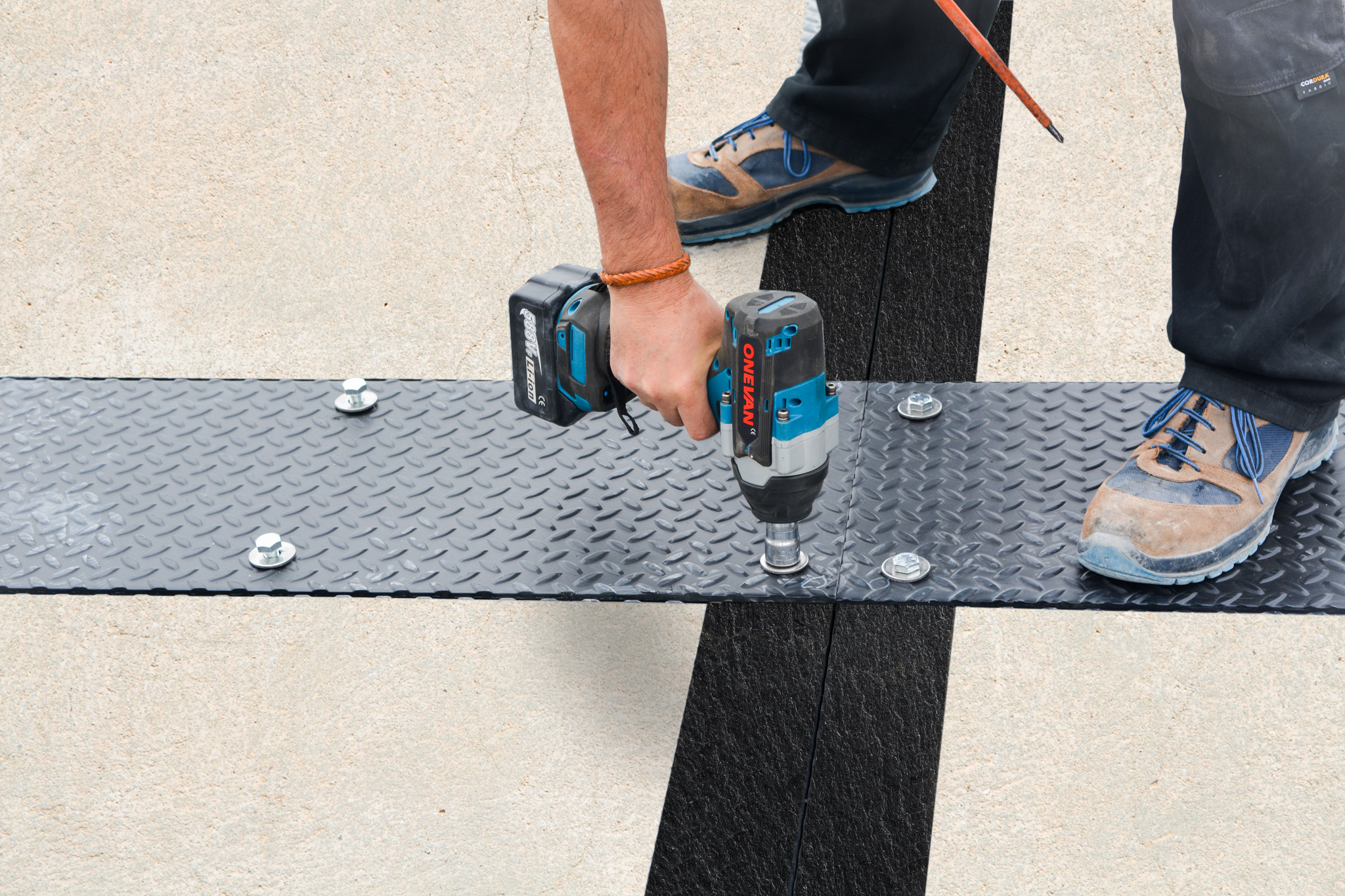

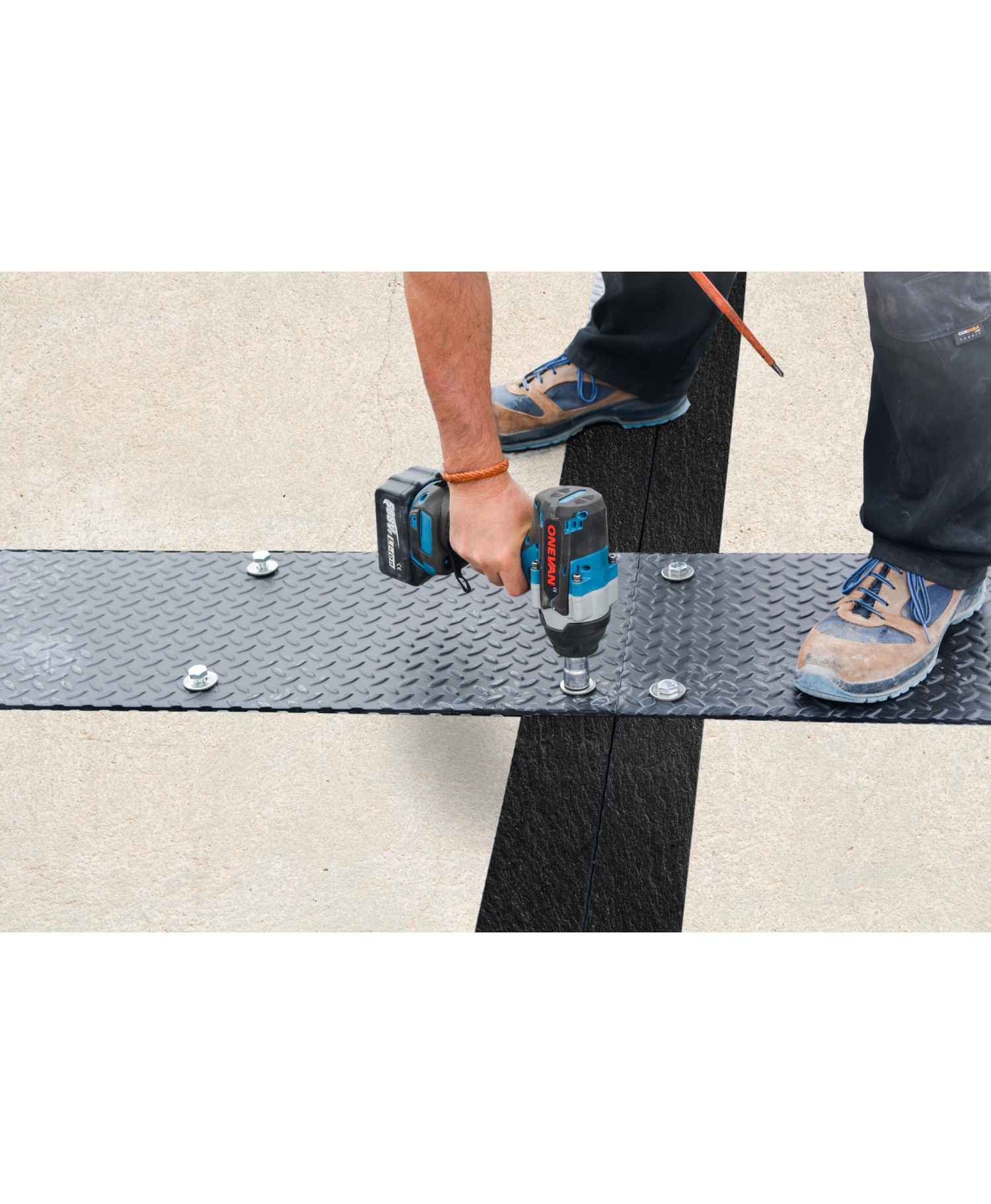

Accessibility and maintenance. We have simplified the assembly and access to the load cells and other elements from the upper part of the scale, placed in transversal structures: "drawers". The load cells are double pivoted and placed on a support that is protected with a dust cover, thus avoiding even more contact with dust, mud, etc.

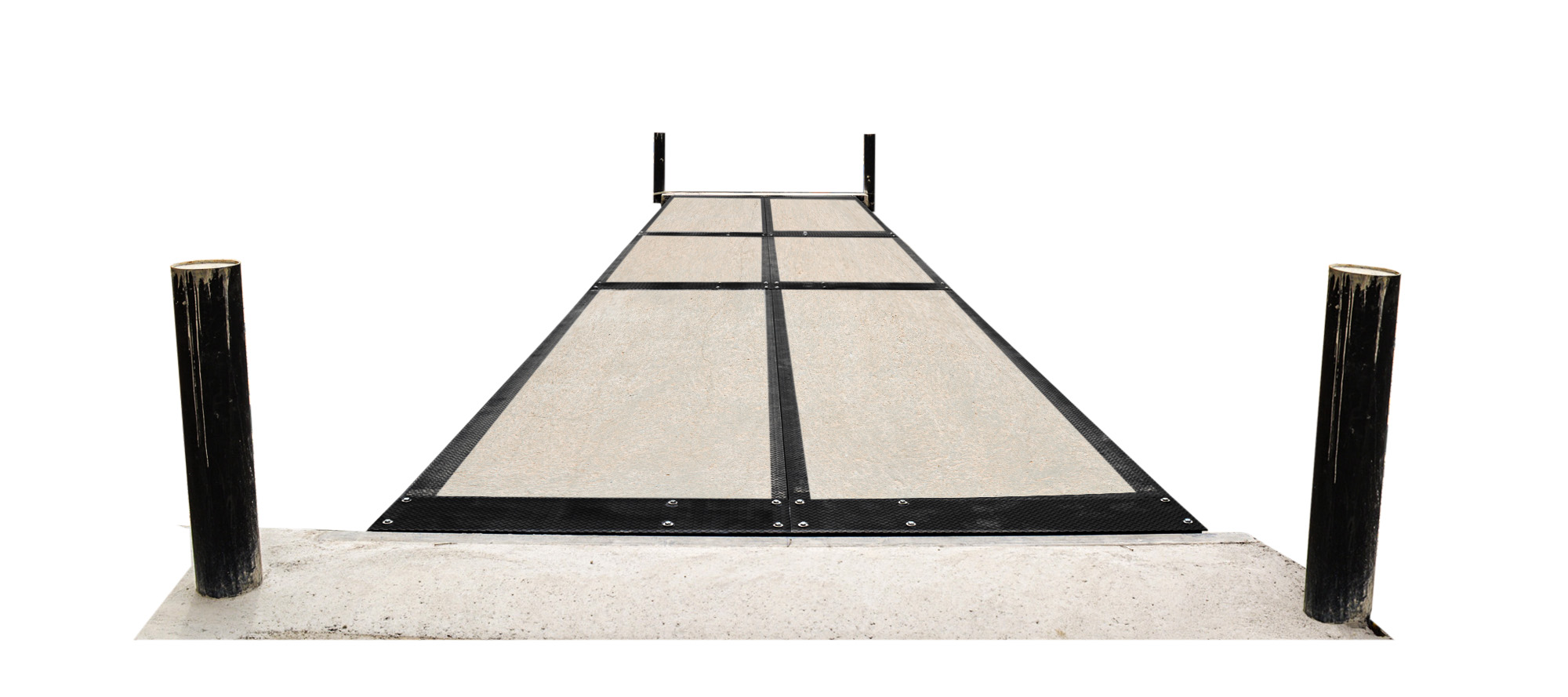

Structure. The running surface is made of concrete, which avoids skidding and maintains greater resistance to wear. The scale has adjustable longitudinal and transversal stops at the ends. The structure is designed with tubes to channel the cables, avoiding unprotected cables. In addition, we offer robust and cost-effective civil works, depending on the strength of the installation floor, thanks to the low dead weight of our system. In specific situations, we can provide a set of metal plates that can eliminate the need for civil works.

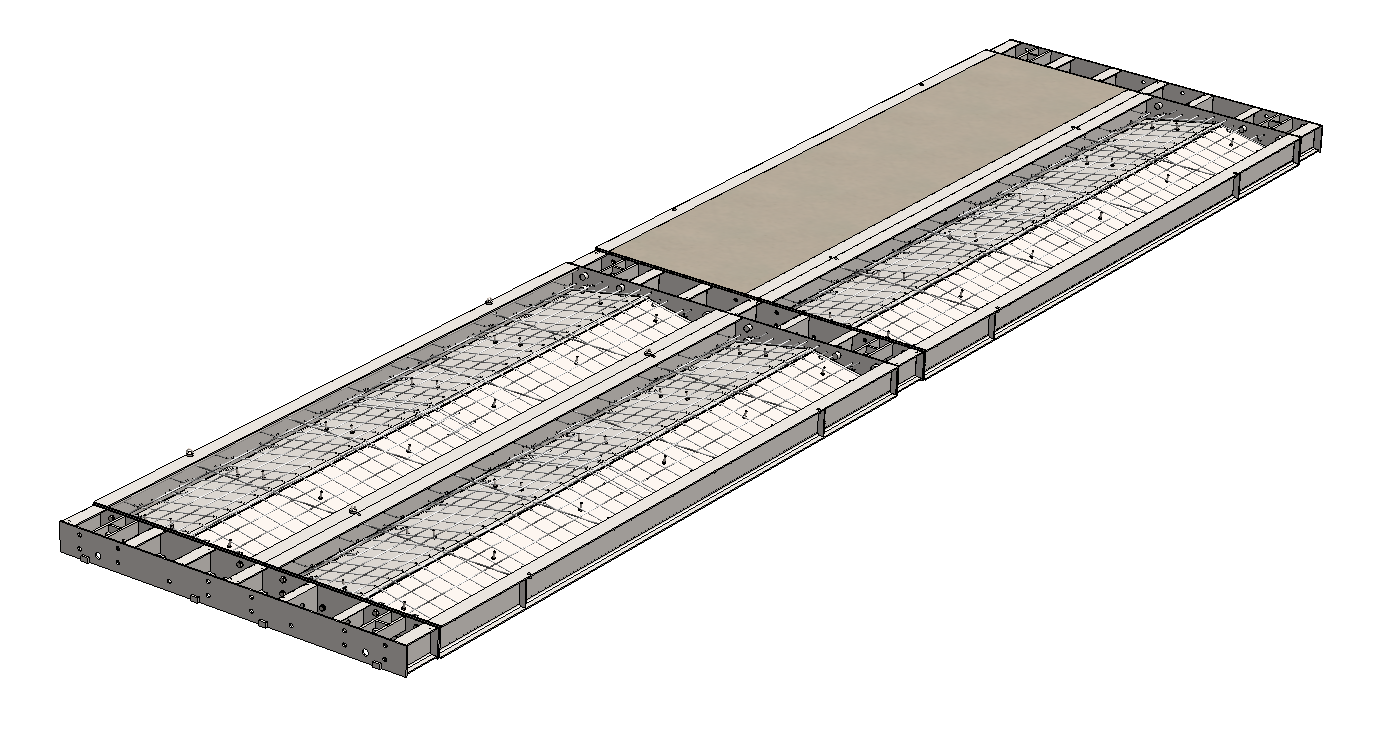

Planos dimensionales

Data

Options

✓ Replacement plates for civil works -Factory cell assembly

✓ Metal ramps -Different widths with central registers (please consult us)

✓ Lateral visual guide

✓ Specific finishes and sur face protection, galvanised.

✓ Installation in explosive atmospheres using EEX ia certified cells and components (see component data sheet).

Finishing / Painting

Paint for metal parts with a high level of anti-corrosion and black colour. Cleaning and degreasing of surfaces by manual brushing according to NBE-EA-95.

The metal parts will be finished with a 2-component, corrosion-protecting, fast-drying, mechanically highly resistant, 2-component polyurethane paint for steel and galvanised steel, black RAL 9505 with a slightly glossy finish.

Suitable for corrosion categories C1, C2 and C3

according to EN ISO 12944-2 as a single coat system with a minimum dry film thickness of 80μm.

Other finishes on request.

Load Cell

CPC model in standard installation

✓ Load cell, with encapsulated strain gauges.

✓ Laser welded enclosure ensuring an IP68 rating.

✓ Capacity: 10t, 20t, 30t, 40t, 50t.

✓ The metal body of the load cell is made of special steel with stainless steel protection with AISI 304 stainless steel casing.

✓ Effective internal protection against strong lightning induced currents.

✓ Designed to avoid the use of screws during assembly, ensuring speed and avoiding fixing errors.

✓ Length of connection cable and earth cable to indicator:15 m. Diameter 5 mm.

✓ Net weight: 5700 g.

✓ Al l c e l l s a re suppl ied wi th the c able protected with rodent-proof metal mesh.
