Célula SQB-SS 150 kg 2 mV/V

REF: 0000574203

Description:

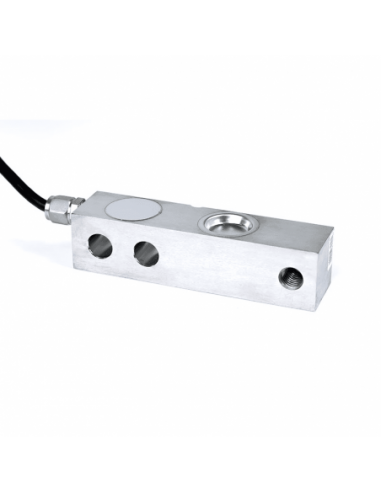

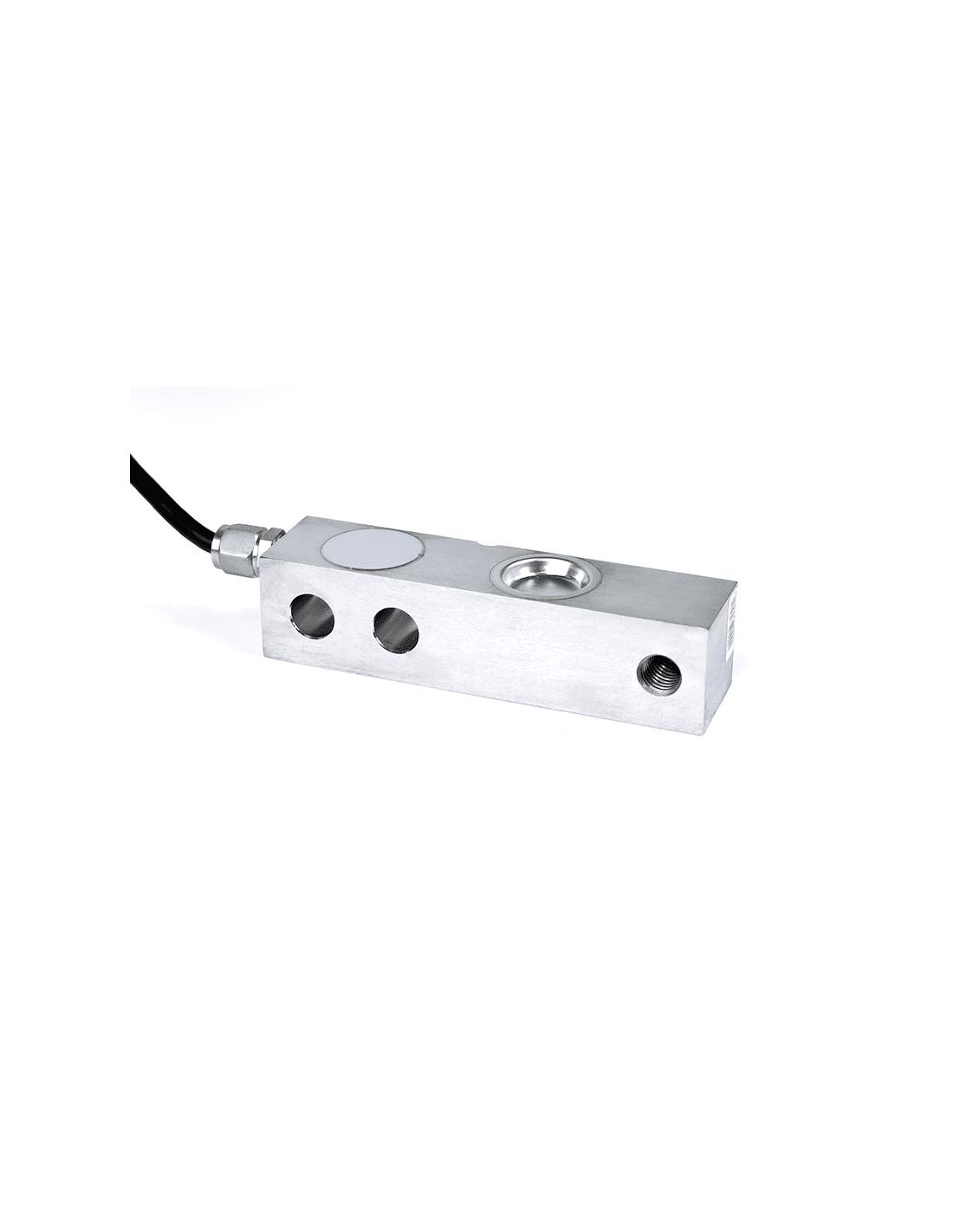

SQB-A cell 150kg

Load cell with a maximum number of 3000 divisions.
Encapsulated strain gauges.
Connection cable with PVC sheath, length 5m. Diameter 6 mm.
IP68 protection.
Heat-treated steel body with electroless nickel plating.
Capacities: 150 kg, 300 kg, 1t, 2t, 3t, 5t. (10t SQB for IU)
Net weight: 1.670 kg. (f.g) and 1.03 kg (f.p).
Packing dimensions: 30 x 16 x 12 cm.
Gross weight: 1,115 kg or 1,930 kg.

Material: Nickel plated steel
