Báscula Puente BP-HG 270

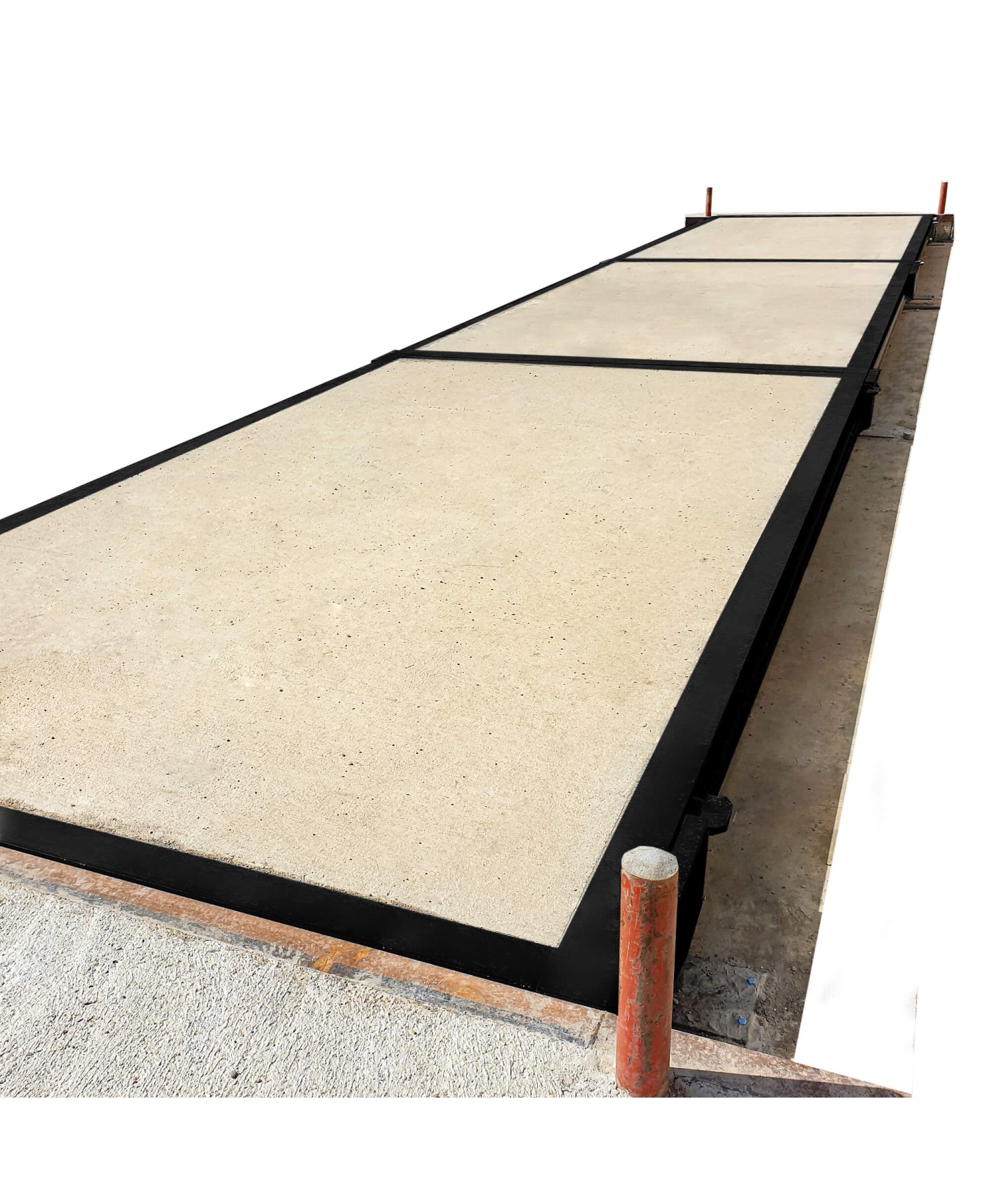

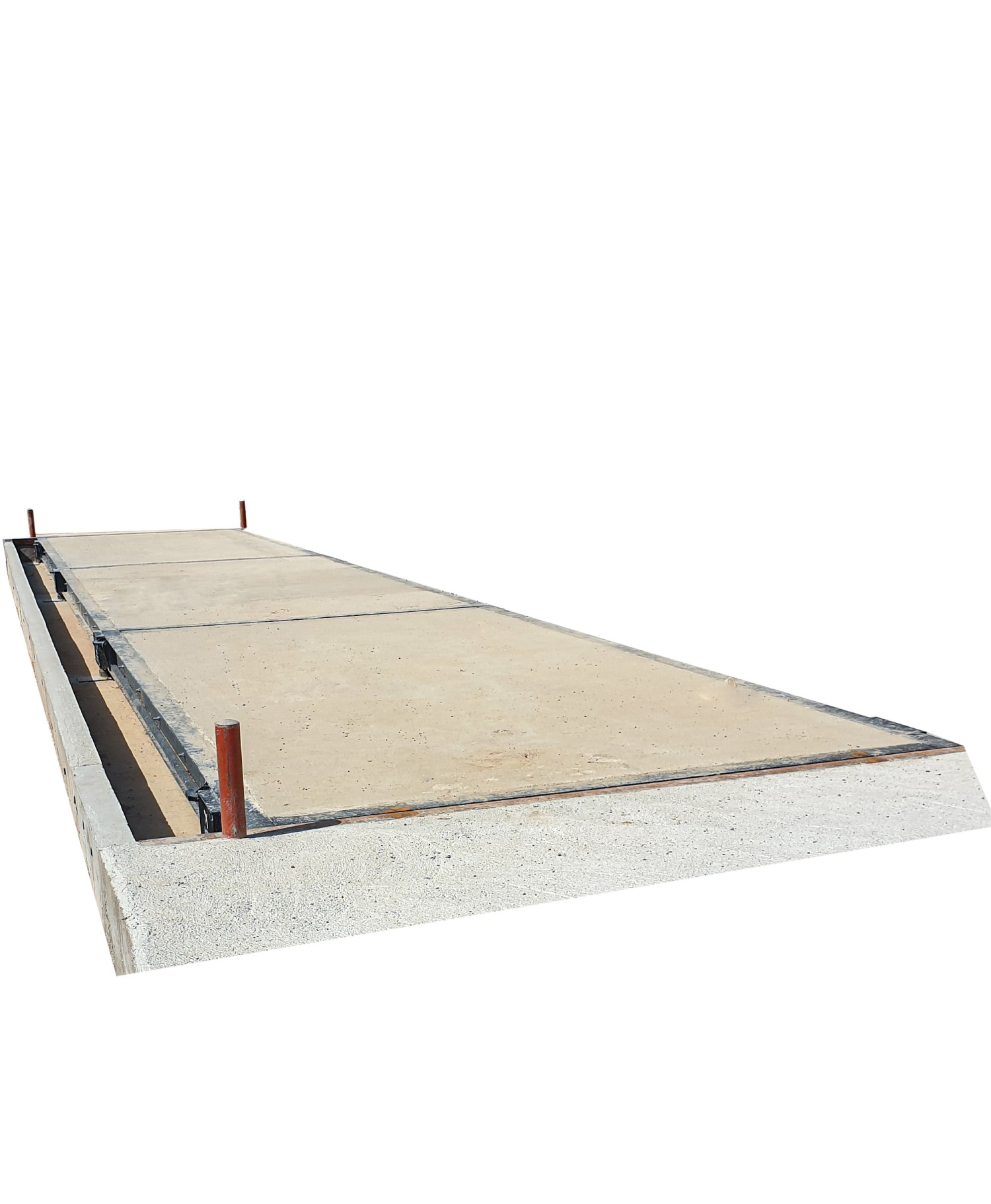

Báscula puente BP-HG 270 omnidireccional con losa de hormigón sobresuelo o empotrada. 3 módulos independientes.

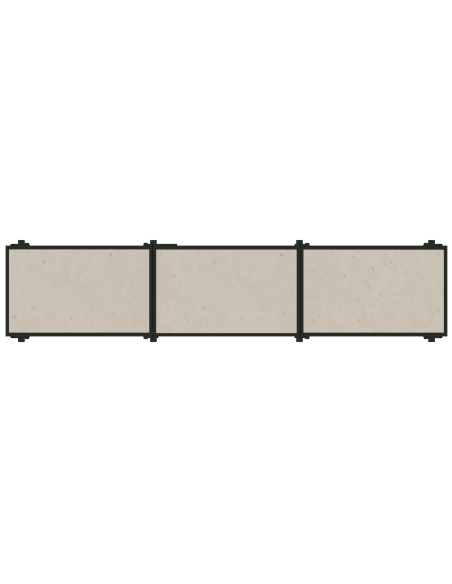

Medidas de 14,5 x 3,3 / 16 x 3,3 / 17,52 x 3,3. Otras medidas consulte con su asesor comercial.
BP-HG 270
WEIGHBRIDGE

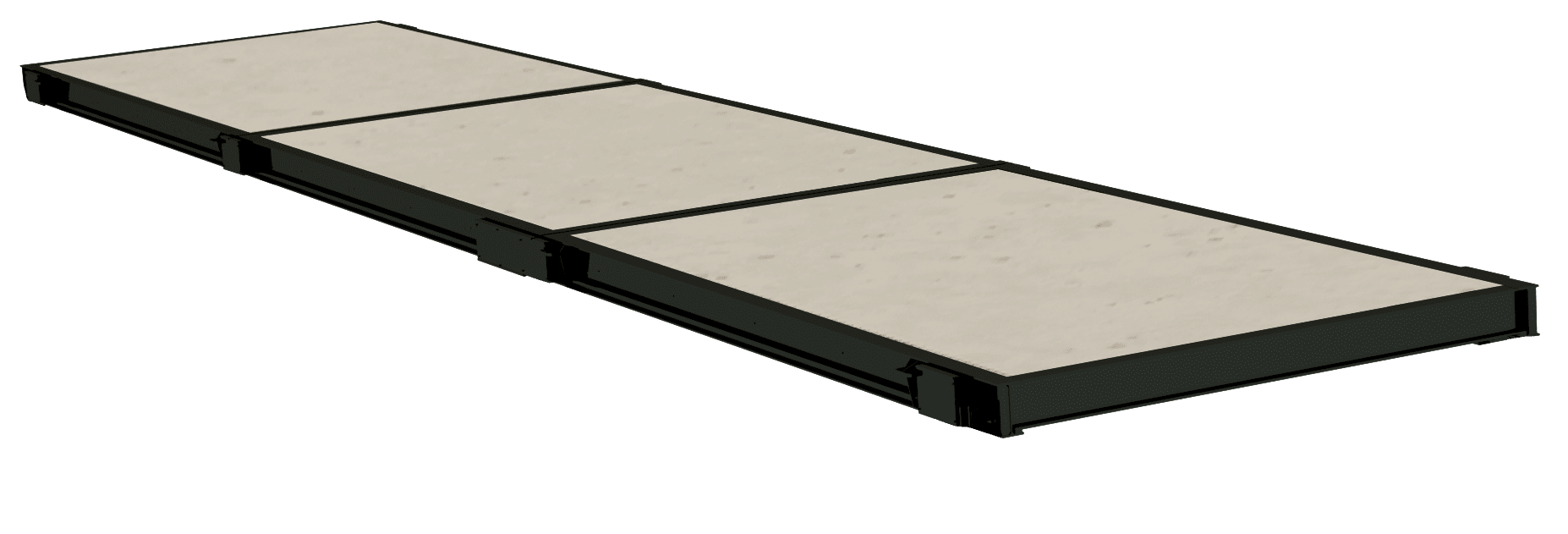

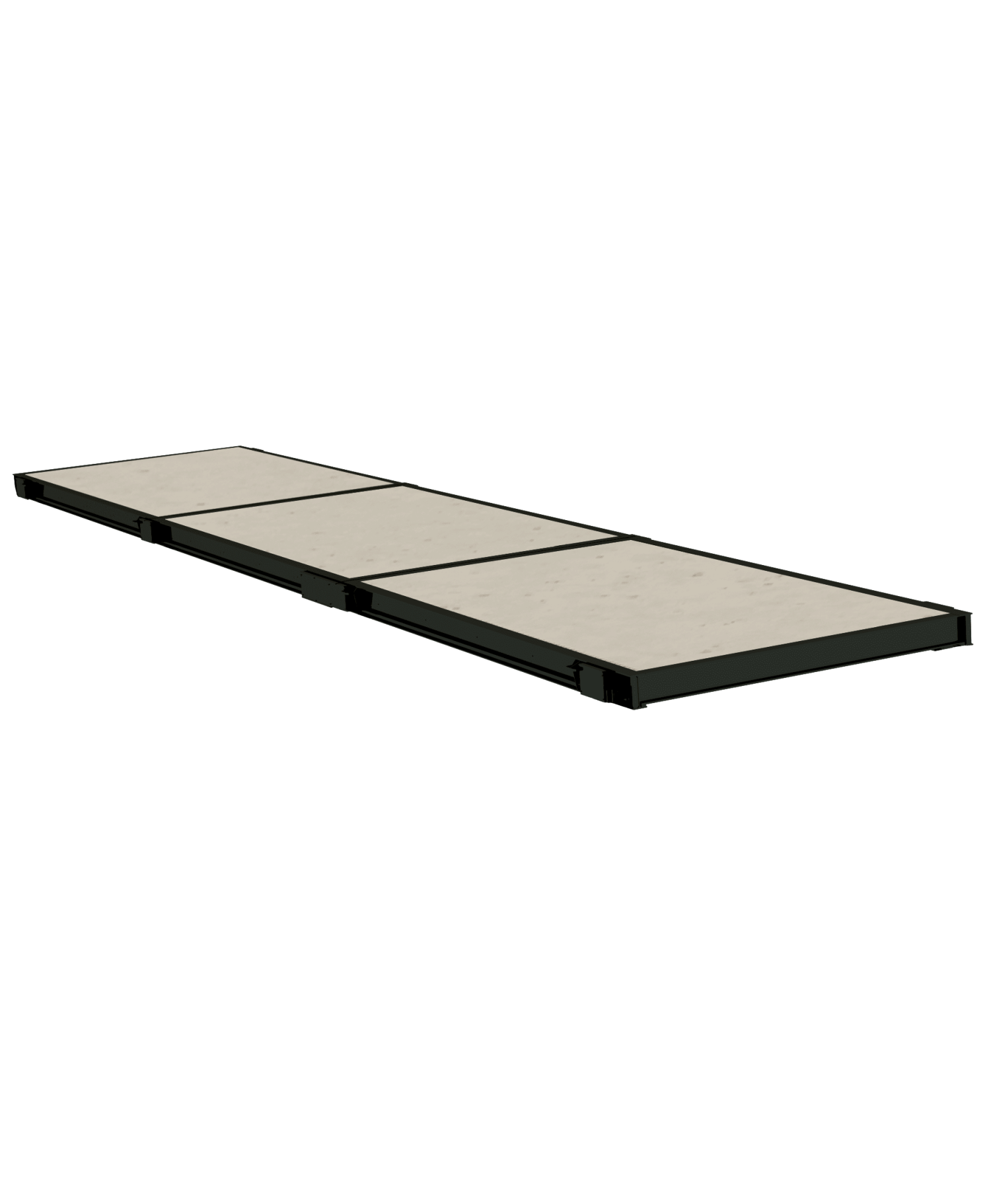

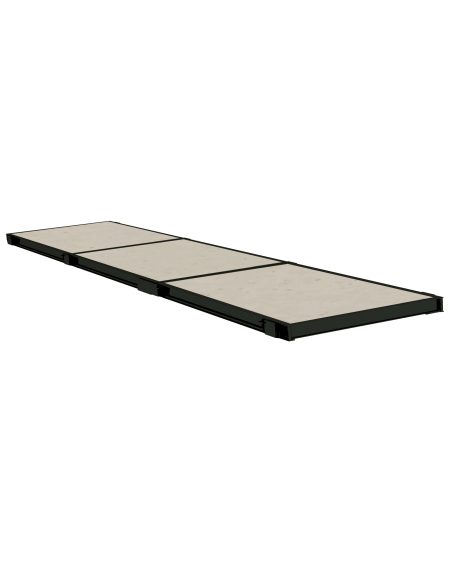

The assembly consists of 3 independent modules, made up of two longitudinal beams with an IPE profile.

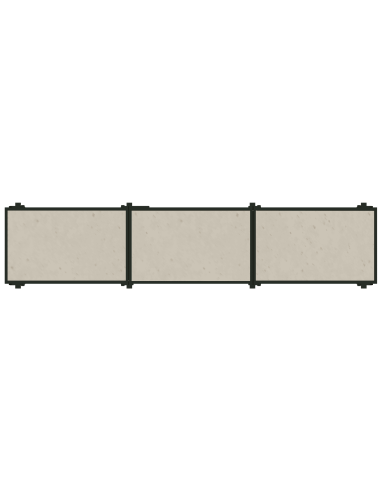

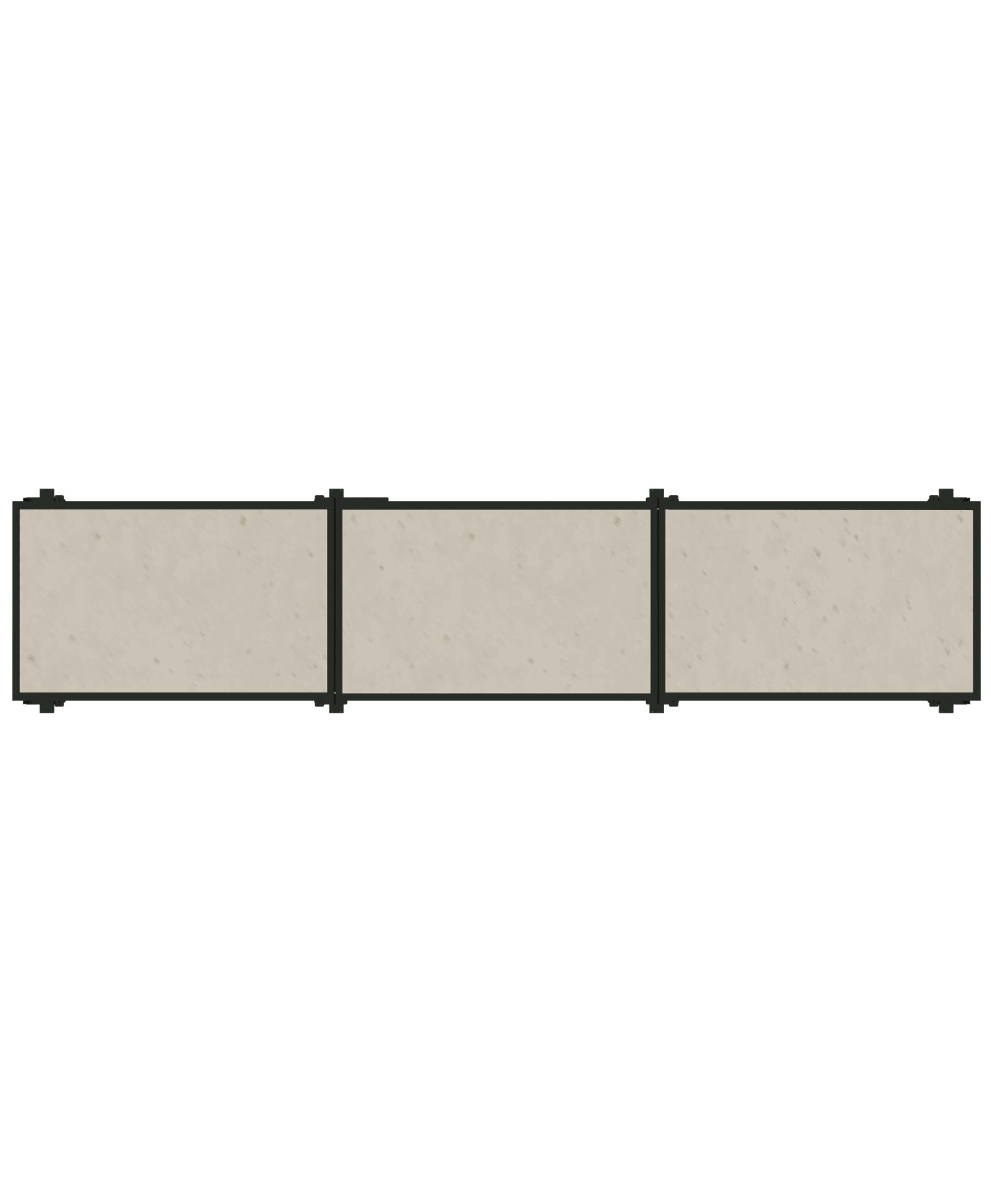

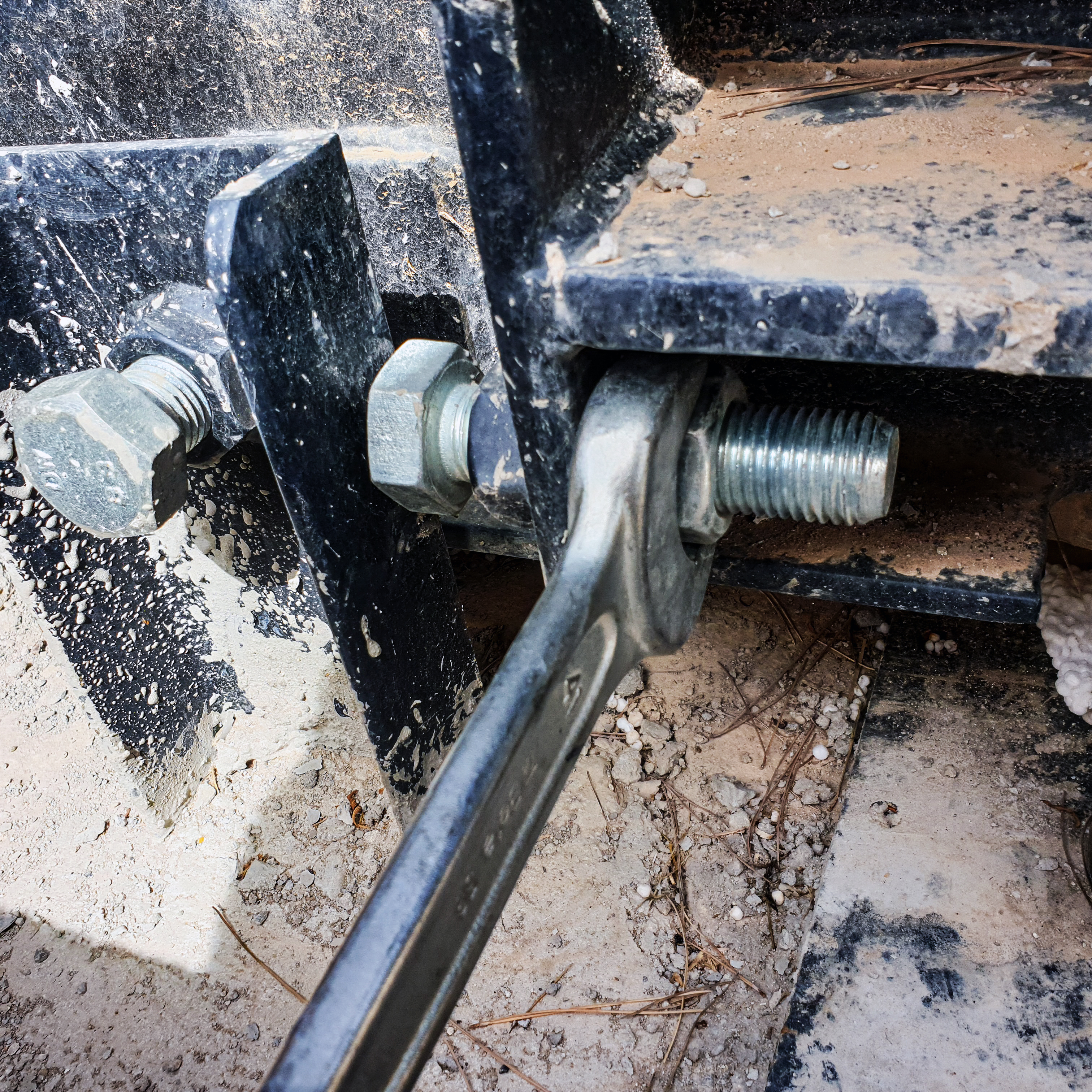

Each module forms an independent volume where the reinforced concrete slab will be located. The bolted joint of the three modules will form the scale.
The useful width of the scale is 3.30 m, which facilitates the circulation and maneuverability of vehicles on it.

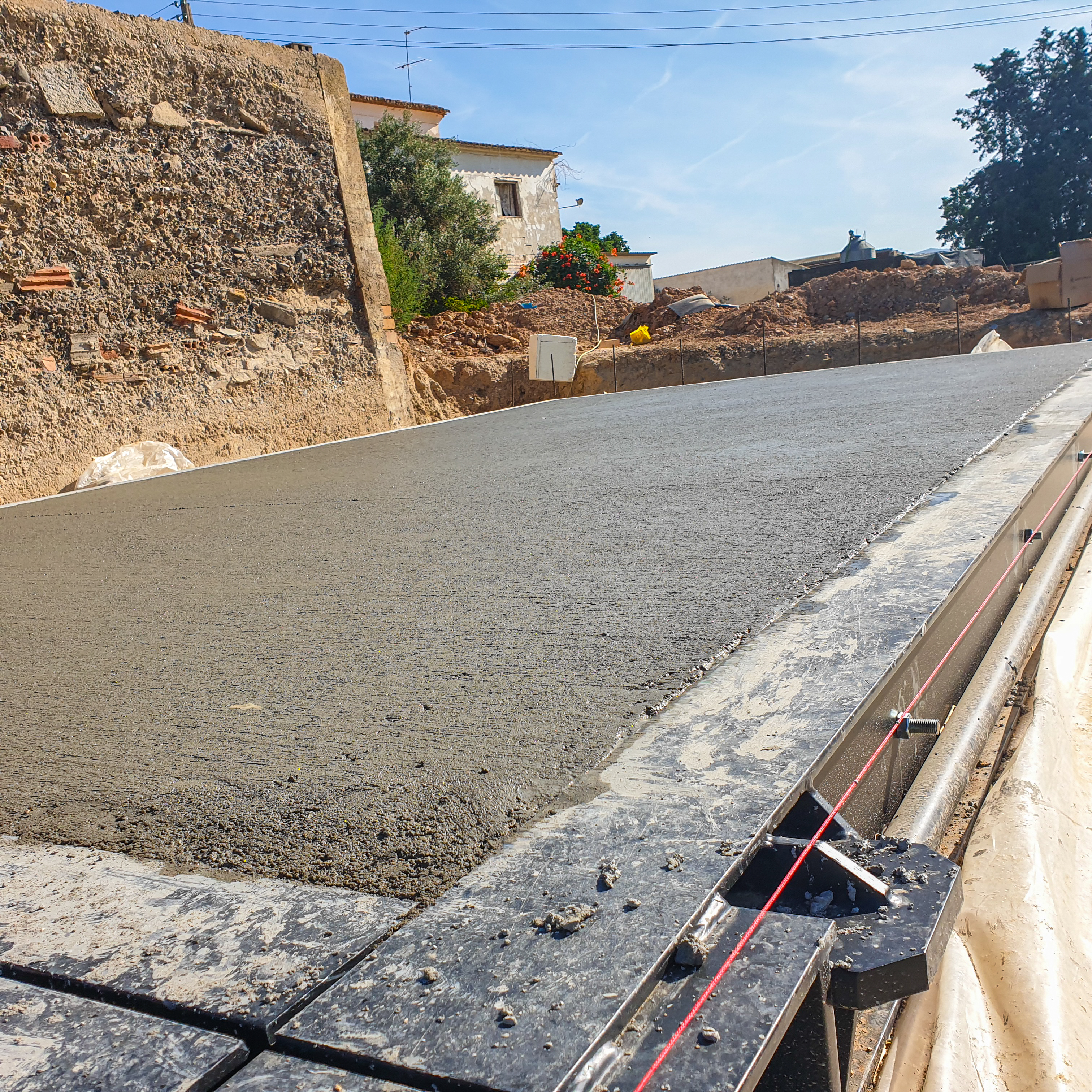

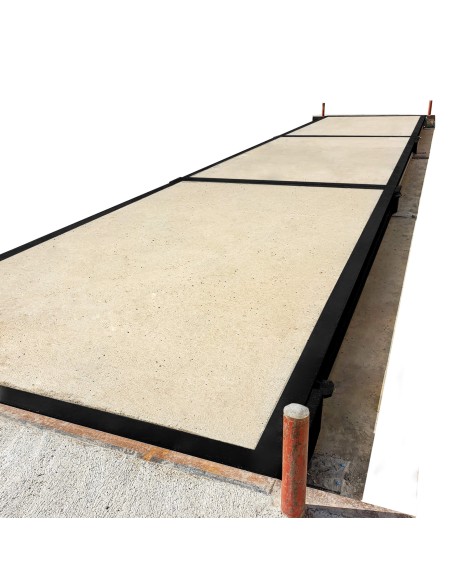

Vehicle access is achieved, in the above-ground assembly, by means of concrete ramps belonging to the civil works, with a maximum slope of 10%.
It can easily support all types of vehicles with approved and legal axle configurations for free circulation on the road. Easy to clean with water jets or brushing (in the above-ground assembly) to remove dirt, thus increasing the useful life of the scale by removing residues that tend to remain wet for a long time.
Access to the longitudinal and transverse cells and stops is from the outside of the bridge, which facilitates assembly and maintenance work.
GENERAL
✓ Steel structure with concrete slab in 3 totally independent modules that allows its transfer.
✓ IPE-270 longitudinal beams.
✓ Supports all types of vehicles.
✓ Easy cleaning and assembly.
✓ Self-pivoting cell system.
✓ Easy transport and handling (no crane required)
✓ Eight 20t CPC cells. Cable covered with anti-rodent metal mesh.

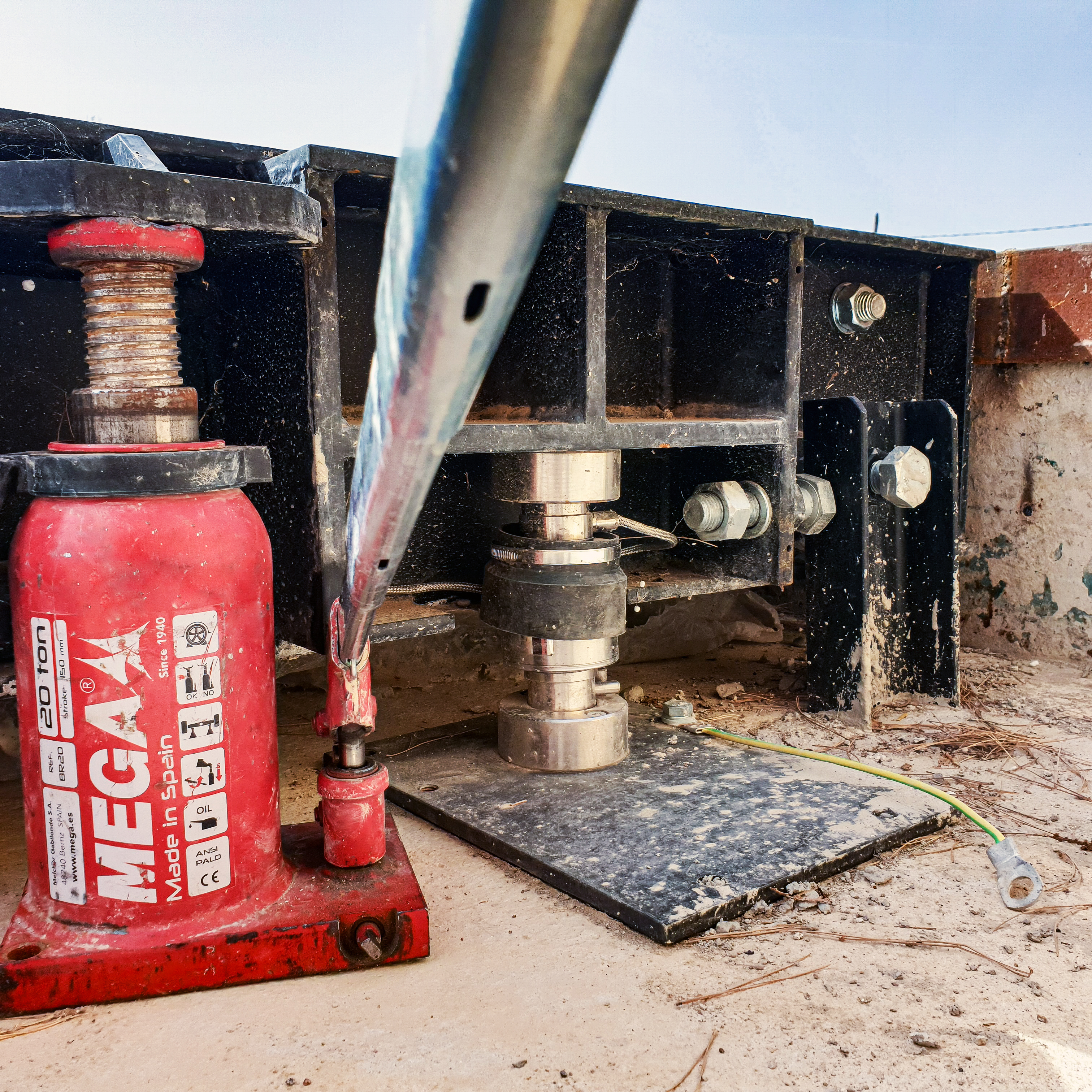

✓ Assembly and access to the load cells, summation box, stops and other assembly elements from the sides of the scale.
✓ Approved for 3,000 divisions.
✓ HIGH usage rate.
✓ High level anti-corrosion paint.

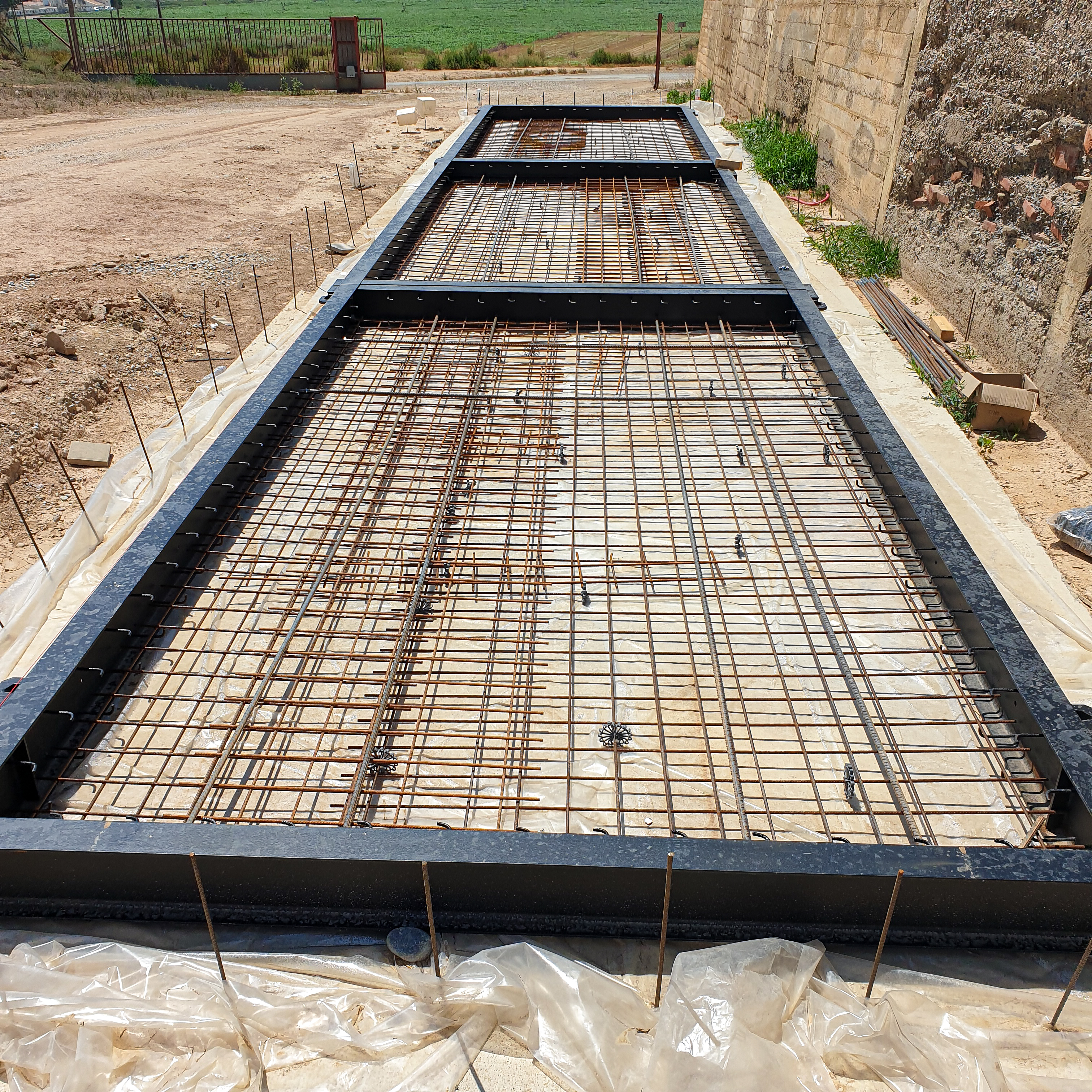

✓ Robust and economical civil work (no formwork required).
✓ Suitable for transport in a 20-foot container.
✓ Possibility of mounting as a built-in scale.

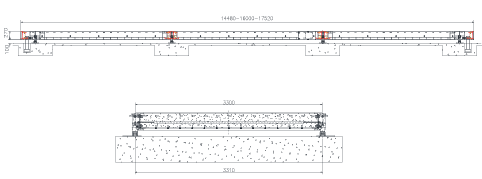

Plans
Data
Certifications
EU-TEC approval of Model T11160 for industrial assemblies model EPEL-21 issued by the NMi of the Netherlands (Notified Body No. 0122). Allows the connection of visors and platforms with approved cells.
Finish / Painting
Cleaning and degreasing of surfaces by manual brushing according to NBE-EA-95.
Finishing with 2-component, fast-drying, highly mechanically resistant, corrosion-protective polyurethane paint for steel and galvanised steel, black RAL 9505 with a slightly glossy finish. Suitable for corrosivity categories C1, C2 and C3 according to EN ISO 12944-2 as a single-coat system with a dry film thickness of 80 μm.
Options
» Additional cable from the summation box to the display
» Scales with cells approved according to the European ATEX directive. Consult the factory for reference and price.
Load cells
CPC model in its standard installation.
» Load cell, with encapsulated strain gauges.
» Laser welded closure ensuring IP68
» Capacity: 10t, 20t, 30t, 40t, 50t.
» The metal body of the cell is made of special steel with stainless steel protection with AISI 304 stainless steel casing.
» Effective internal protection against strong currents induced by lightning.
» Design thought to not use screws in assembly, ensures speed and avoids fixing errors.
» Cable length 15 m. Diameter 5 mm.
» Net weight: 5700 g.
» For all capacities the cable is protected with anti-rodent metal mesh.
