DXN-60 indicator

Technical File Technical File Technical File

REF: 000X13980476

Description:

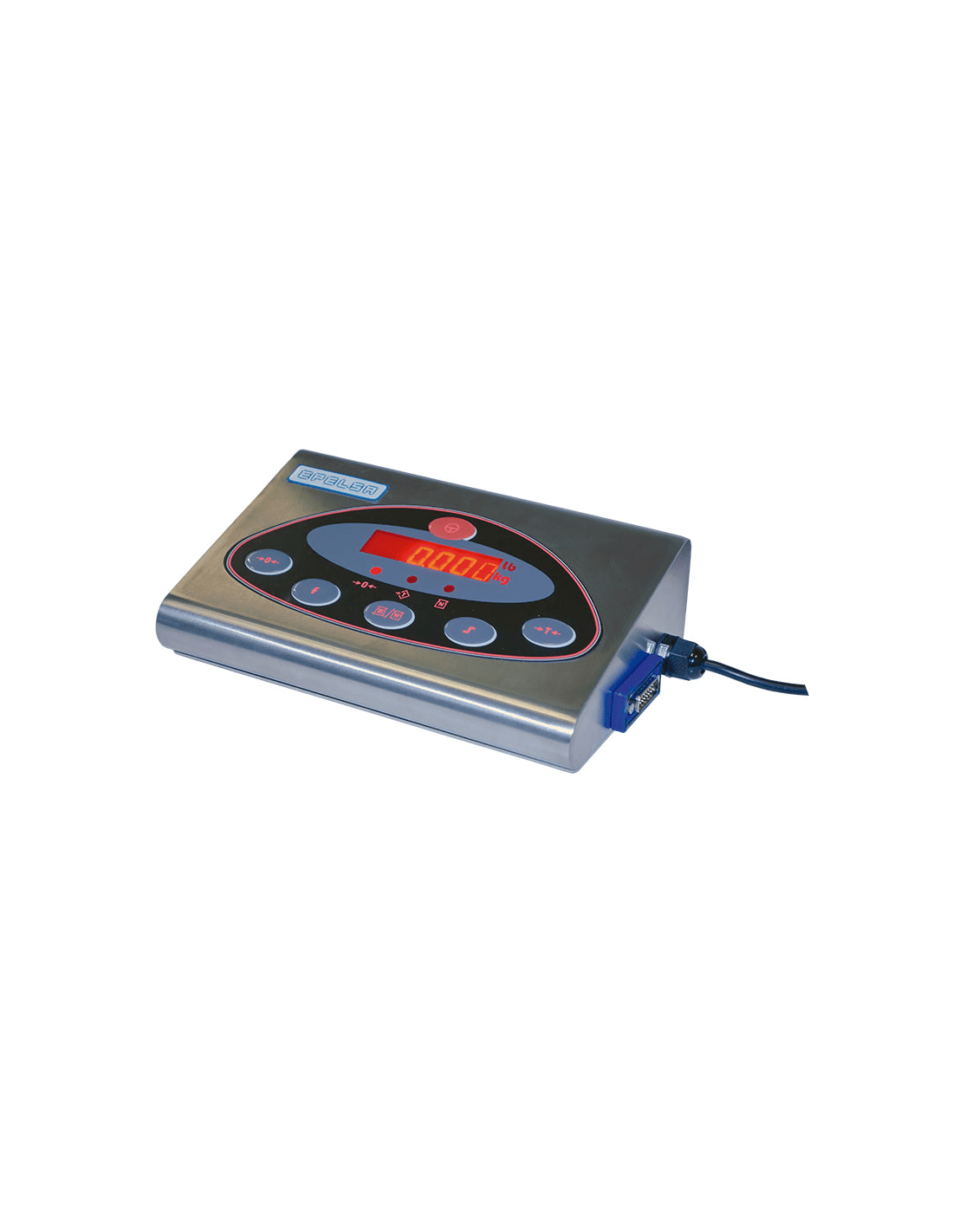

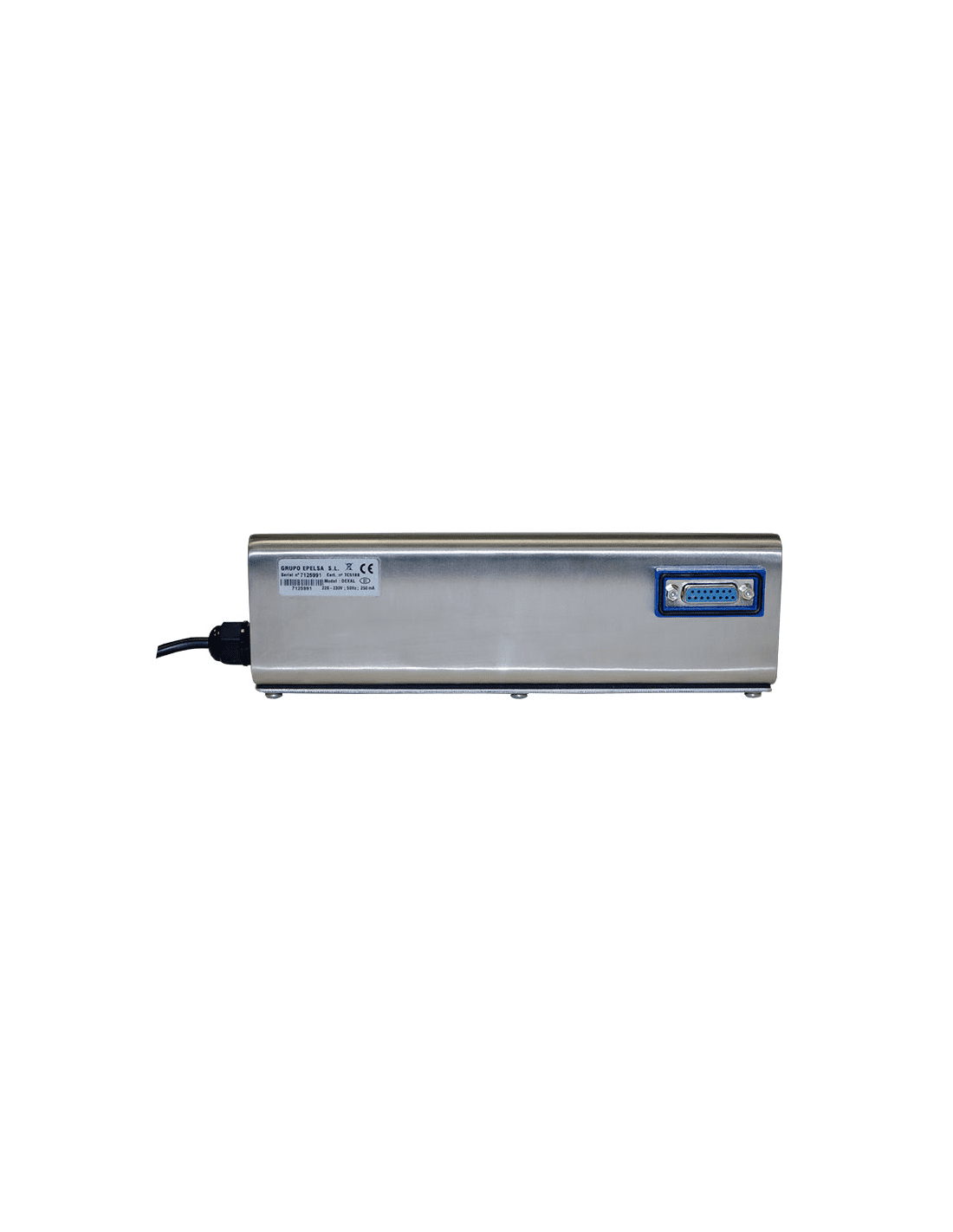

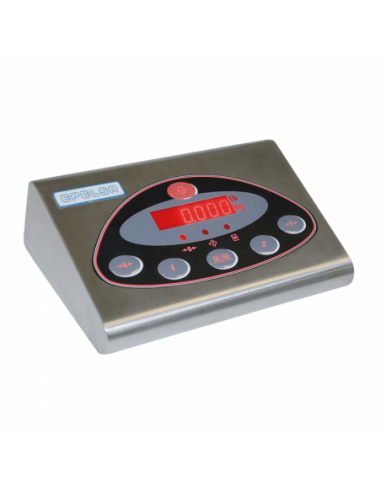

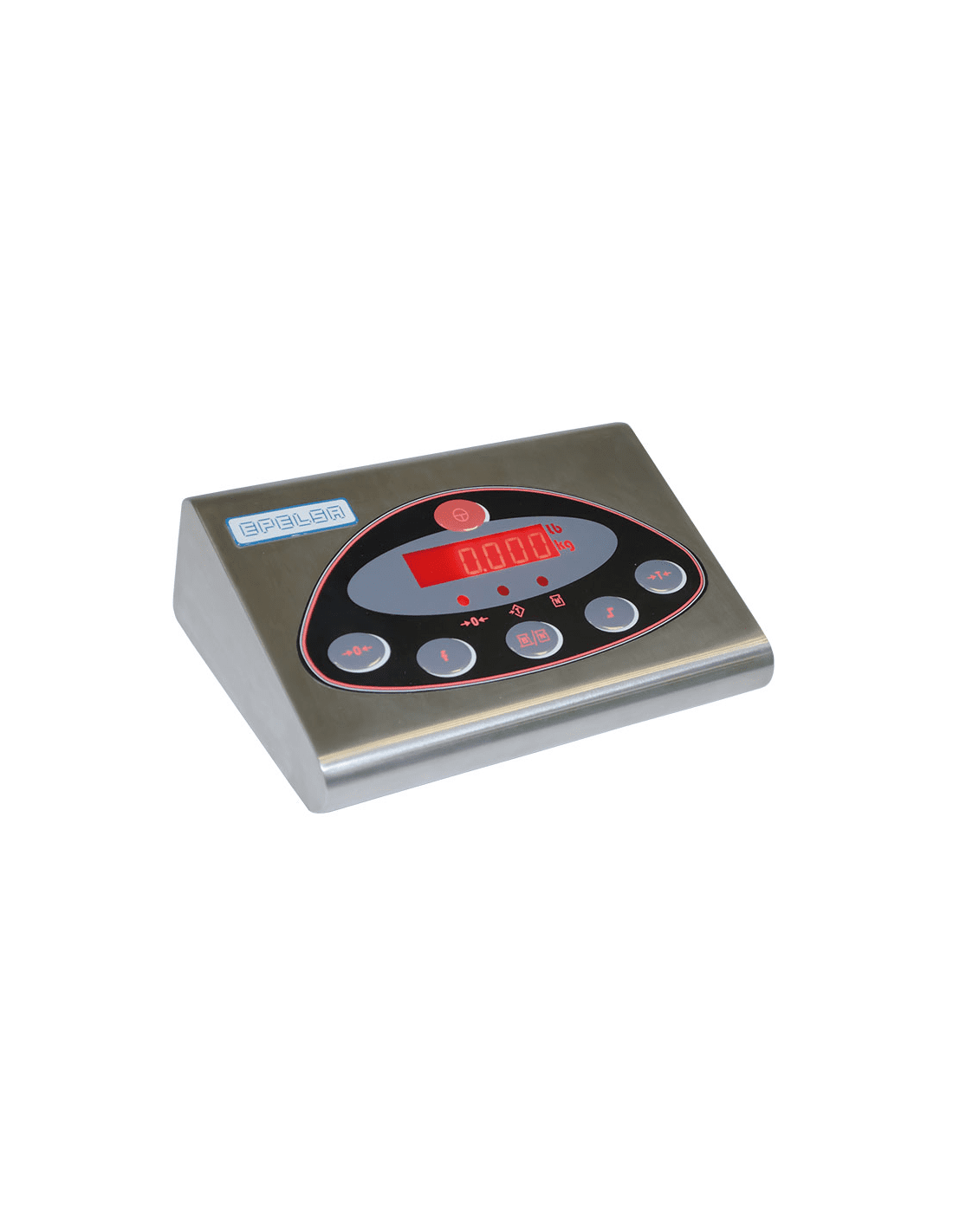

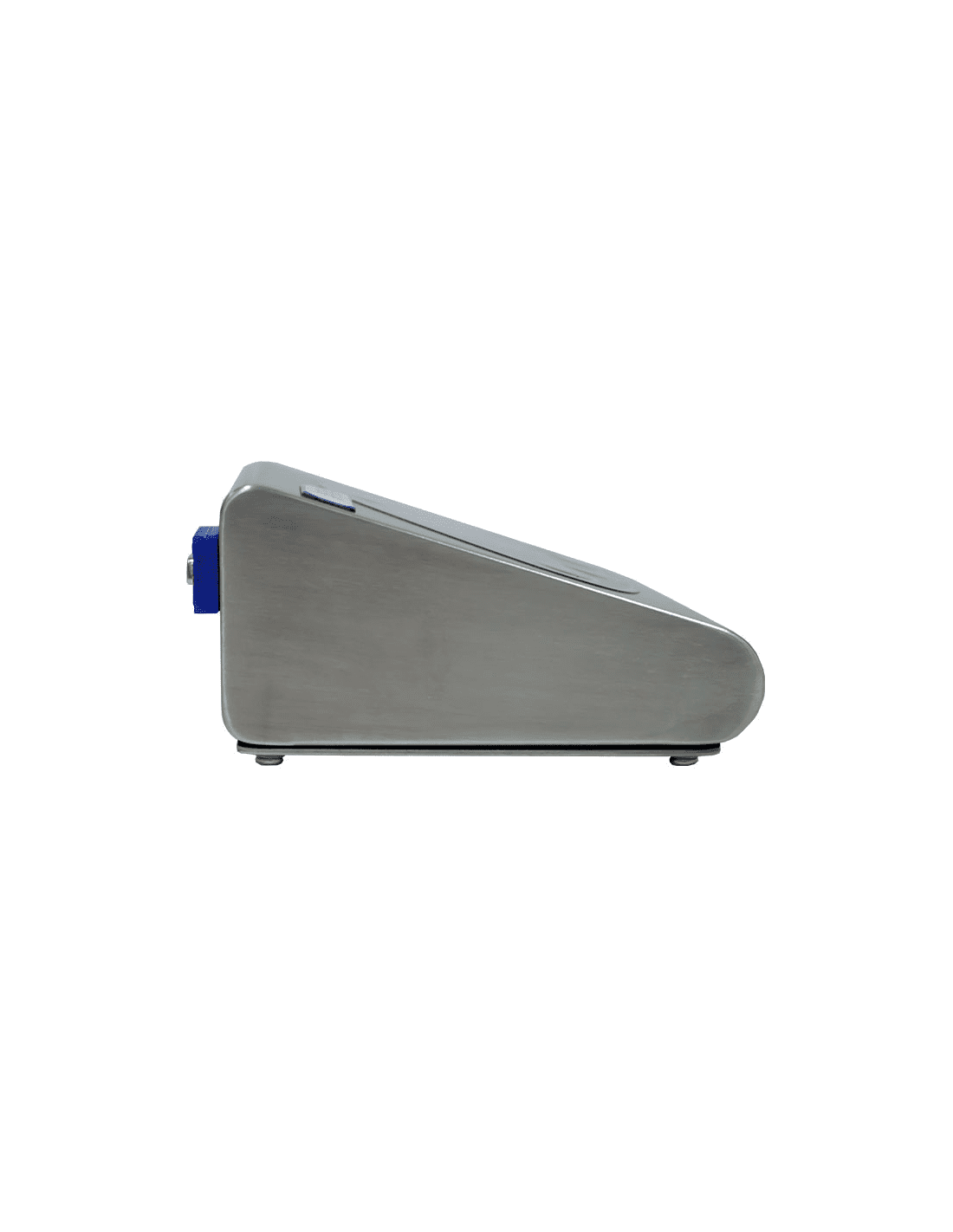

DEXAL multifunction Weight indicator with stainless steel housing

IP65 stainless steel watertight housing.
Wall mounting for wall or column mounting.
6-key keypad with 6-digit LED numerical display, 14mm high.
Keyboard calibration.
Programmable indicator from 1kg up to 150t.
Number of divisions: from 100 to 10000 in steps of 100.
RS-232 output for printer or computer.
Alternating power supply: 220V +10% -15%.
and 50/60 Hz with TT.
Power consumption: Mains 7 VA max.
Protection against HF radiation and mains failure.
Net weight: 2.5 kg (indicator+holder) / Packed: 2.8 kg.
Packing dimensions: 31 x 27 x 12 cm.

Type (Indicators & repeaters): Multifunction

Tactile: No

Alphanumeric: No

With printer: No

with Labeler: No
