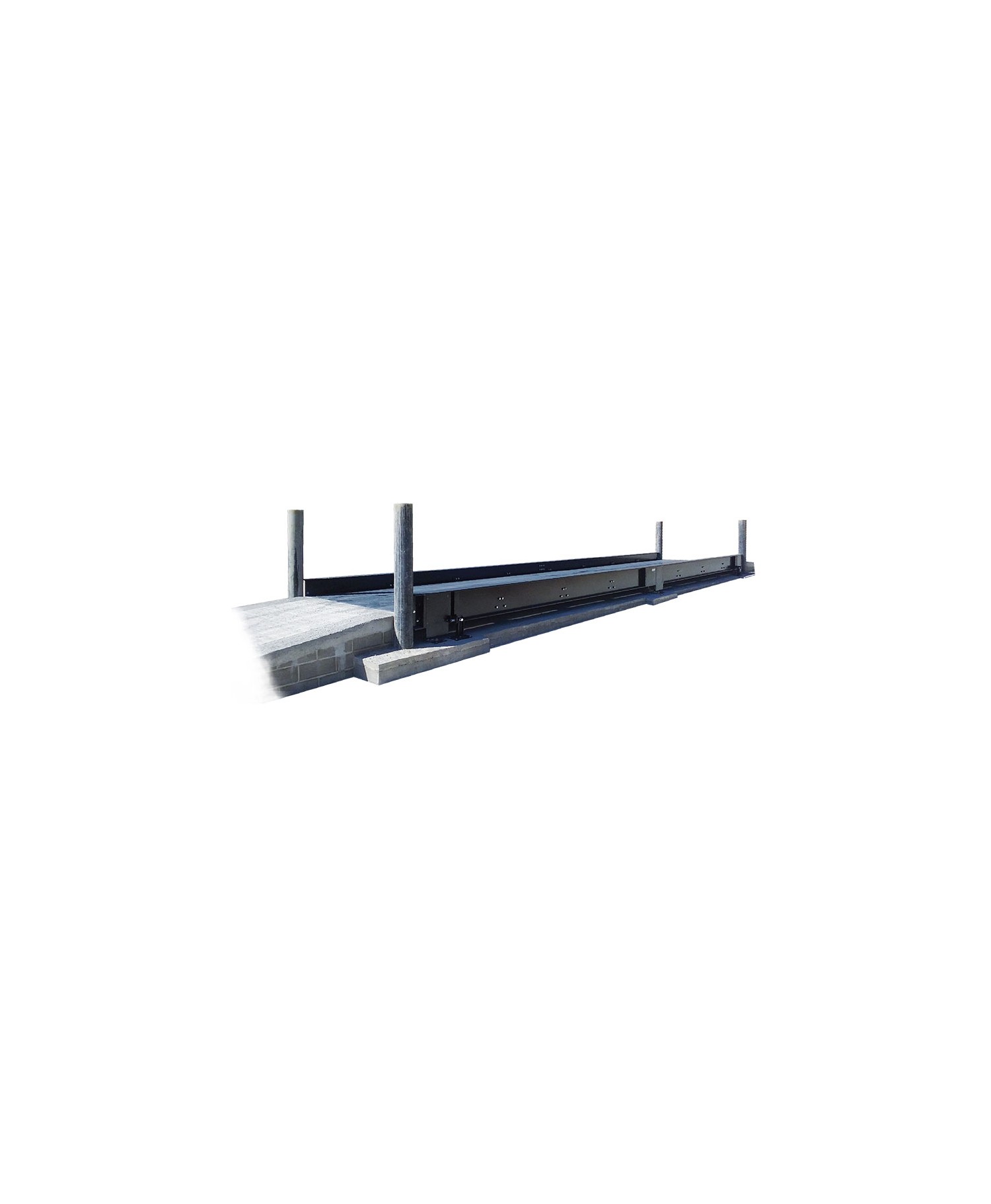

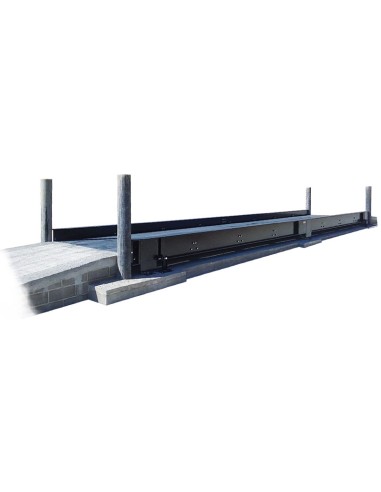

Steel structure formed by two IPE-360 longitudinal beams.

Useful width 3m. and rolling height 42,5cm approx. (BP-CRA360) or 32,5cm approx. (BP-CR360).

Mounting and access to load cells, sum box, buffers and other mounting elements from the sides of the scale.

Eight or ten support points with self-centring load cells.

Supports all types of vehicles.

Running surface with 10 mm smooth sheet metal.

High level anti-corrosion paint.

HIGH use regime.

Approved for 3000 divisions.

Easy cleaning and assembly.

Easy transport and handling.

CPC load cells, with lightning protection.

Robust and economical civil works.

Suitable for transport in 20' container.
