Balanza SOLO PESO INOX
Robust and versatile scale, with new LED display, improved hardware, USB port and CE approval, ideal for harsh environments.
By buying this product you can collect up to
86
loyalty points
.
Your cart will contain total
86
points
that can be converted into a voucher of
€17.20
.
SOLO PESO INOX
NEW SOLO PESO
The SOLO PESO RESTYLING scale has arrived to revolutionise the retail and industrial sector. This versatile scale offers robust weighing equipment designed to excel in even the toughest environments. With its new LED display, weight readings are clearer than ever.

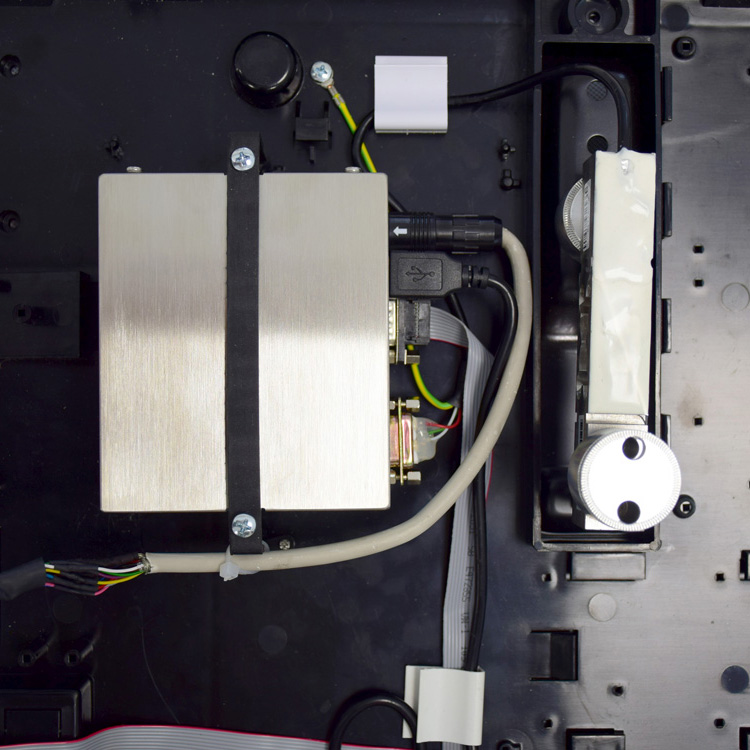

In addition, its hardware has been upgraded with the innovative VIPOUT Box, and the usual RS-232 communications are joined by a USB port for both power and data.
The SOLO PESO INOX scale is CE approved and guarantees the quality and safety you need in your weighing operations.
OVERVIEW
With its robust aesthetics similar to the previous SOLO PESO INOX and a stainless steel finish, it has a 36 x 24.5 x 2 cm plate, LCD display and 5-key keypad -Class III - 3000 Divisions.
-Stainless steel casing
-Central support load cell.
-LED type indicator.
-Keys: ON/OFF, Tare, tare fixation and manual zero.
-Weighing: The weight of the load deposited on the plate is instantly shown on the display.
-It has numerous protocols to communicate with TPVs or ECRs of different brands.
-Quick and easy connection.

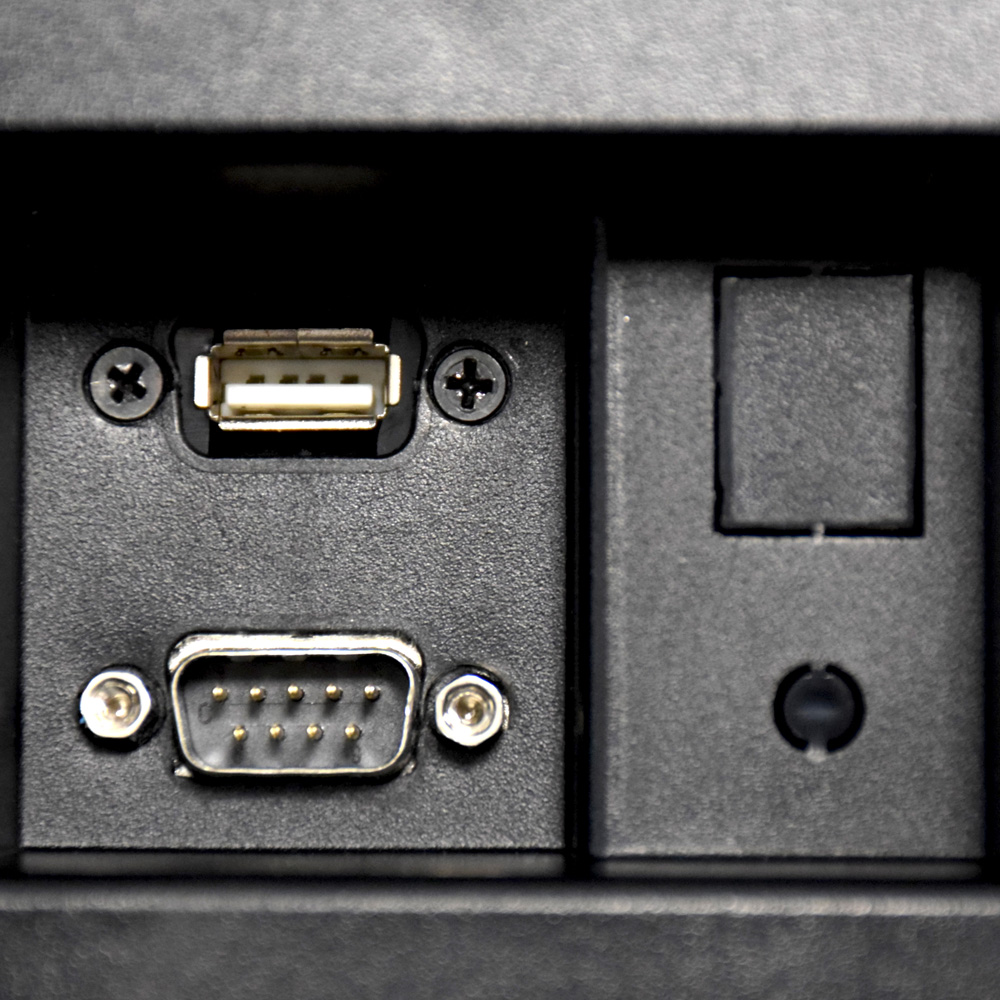

-USB connection (for both power supply and data).
-RS-232 output (for both power supply and data).
-No data storage.
Possible applications
Dimensional drawings
Technical data
Communications
Possibility of sending the weight to the PC in different ways:
-By request from the POS (wide number of protocols).
-On request from the PC.
-Manual form.
-Automatically.
-Speed: 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 Baud.
-Number of BITS: 7 and 8.
-Parity: PAR, IMP, OFF.
The communication parameters with POS are configurable, consult the manual of your POS to adapt these parameters correctly.
Electronic
POWER SUPPLY WITH EXTERNAL POWER SUPPLY:
Voltage 5 to 12 V
Power consumption 10 W
CELL POWER SUPPLY
Voltage 5 V
ANALOGUE/DIGITAL CONVERSION
Resolution up to 6,000 divisions
THERMAL STABILITY
Shielding against radio frequency and voltage variations (Certification against EN45501:2015):
-Indicator ONLY WEIGHT or PPI.
-Load cell.
Protocols
COMMUNICATION PROTOCOLS
Dollar $ protocol, standard communication, with the following functions:
Scale reset
Weight request
Autozero request
Box opening
Manual weight transmission: the weight can be sent to the computer, without a request from the computer.
Automatic transmission: If the TAP parameter in the installation menu has a value other than 0, the scale will constantly send the weight to the computer.
POS protocol. The scale itself incorporates the following protocols:
- IBM (Pos System 4683, 4684 and 4696).
- SIEMENS/NIXDORF (Beetll Series)
- ICL
- BULL (Brises Series)
- HUGIN SWEDA (TPV 5462) -
SHARP ER (Checkout-06)
- TEC S1 21
TISA Protocol
IP3 or CASIO protocol
(also known as BERKEL)
Checkout Dialog 06 protocol
IBM protocol
UNIWELL Protocol
Protocol Checkout Dialog 03
Samsung 6500 Protocol
ELZAB Protocol
Vectron Protocol
Protocol ECR1 / SH457P / Barcode Simulation and Weight Sending
Protocol Quorion / ECR7
Protocol S100 / S100A
Protocol Sending PPI Equivalences
to other protocols:
TPV 2B / Uniwell - W
TPV 3 / SHARP / CHECKOUT-06
POS 4 / BERKEL
TPV 5 / CHEKOUT-03
POS 7 / Samsung
POS 8 / Dicentro
POS 11 / MIPEL
Countertop: Yes
Hanging: No
Printing: No
PC technology: No
Touchscreen: No
TPV / Checkout connection: Yes
Internal use: No
Capacities: No
