DZN Indicator Features

- Stainless steel housing with IP-65 degree of protection.

- Wall mounting for wall or column mounting in ABS.

- 8 functional membrane keys, plus ON/OFF.

- 6 1" LCD digits and graphic bar.

- Backlight of different adjustable tones (capable of automatic change to green, yellow and red, like traffic light).

- Cable outlet through watertight cable glands.

- Metrological access by opening the housing.

- Column and/or wall bracket.

- Real time clock.

- Internal resolution: 16,000,000 points.

- Maximum adjustment resolution (UI): 30,000 divisions.

- Approved to 6000 divisions (and 2 ranges of 3000 divisions).

- Maximum sensitivity: 0.4 μV/division.

- Connection with up to 4 cells of 350 Ω (8 of 700 Ω).

- Internal 2000mAh Li-ion battery, with up to 36 h of autonomy.

- RS-232 channel for PC or printer (various ticket formats).

- Maintenance: limited to one cleaning if necessary.

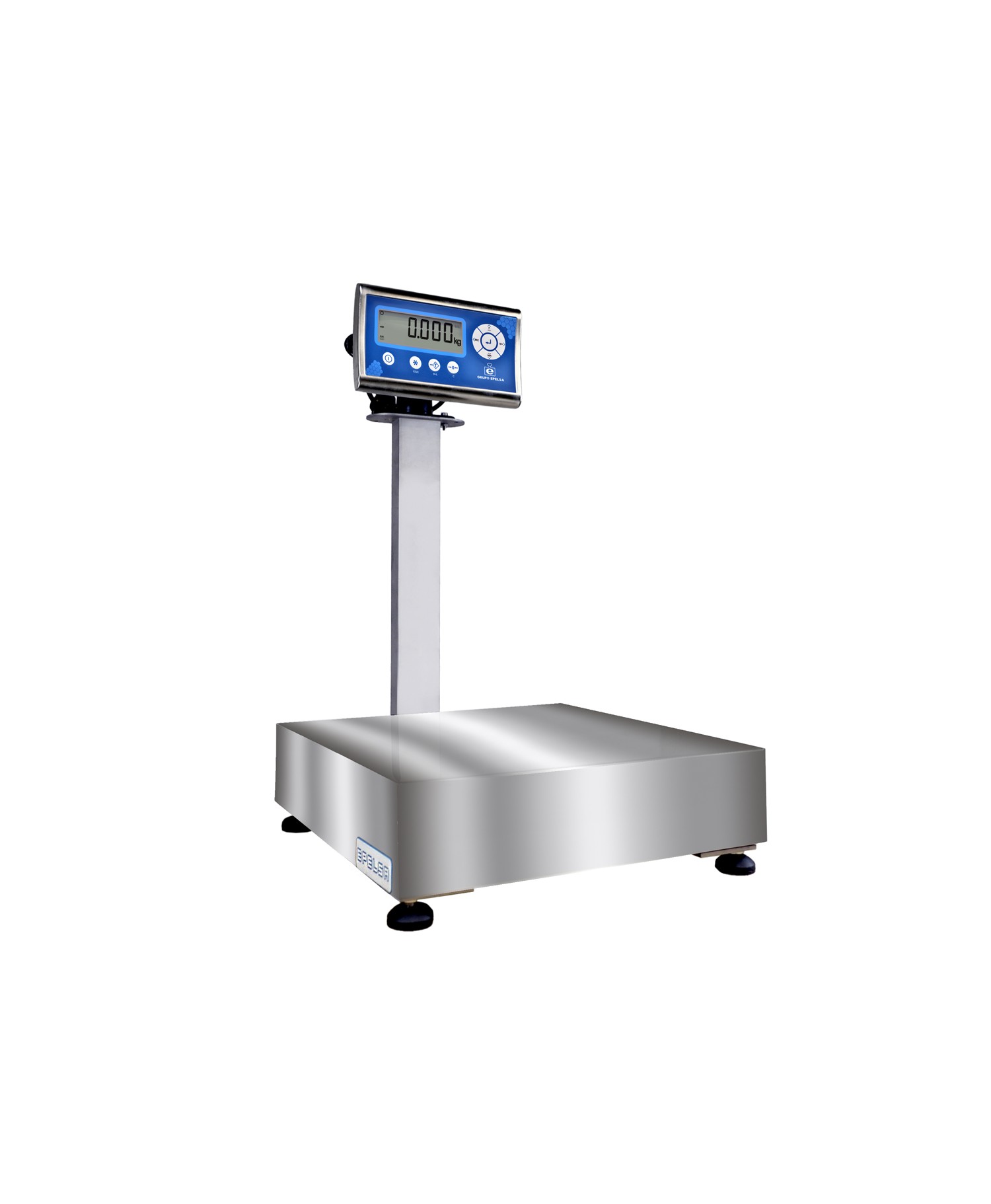

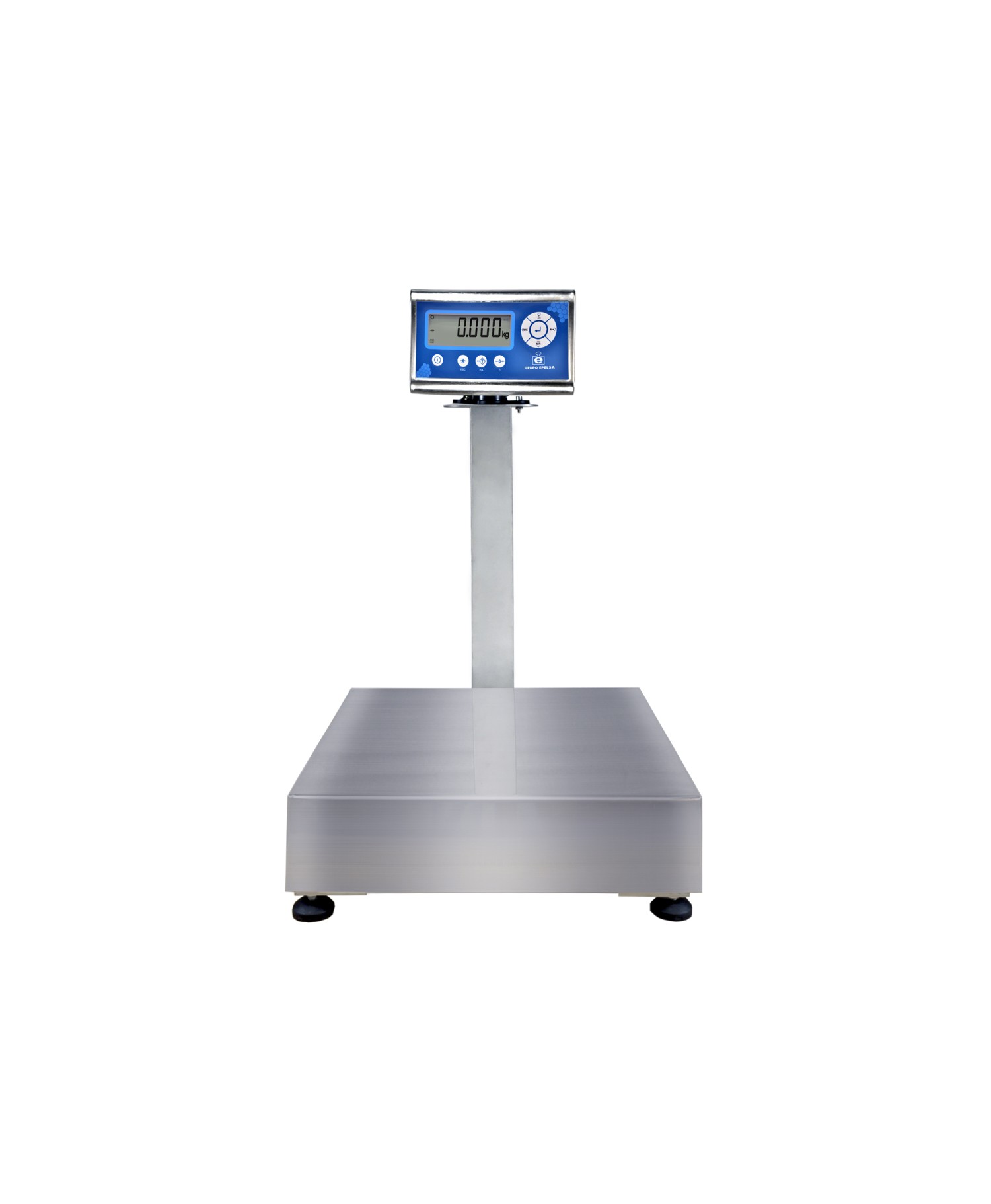

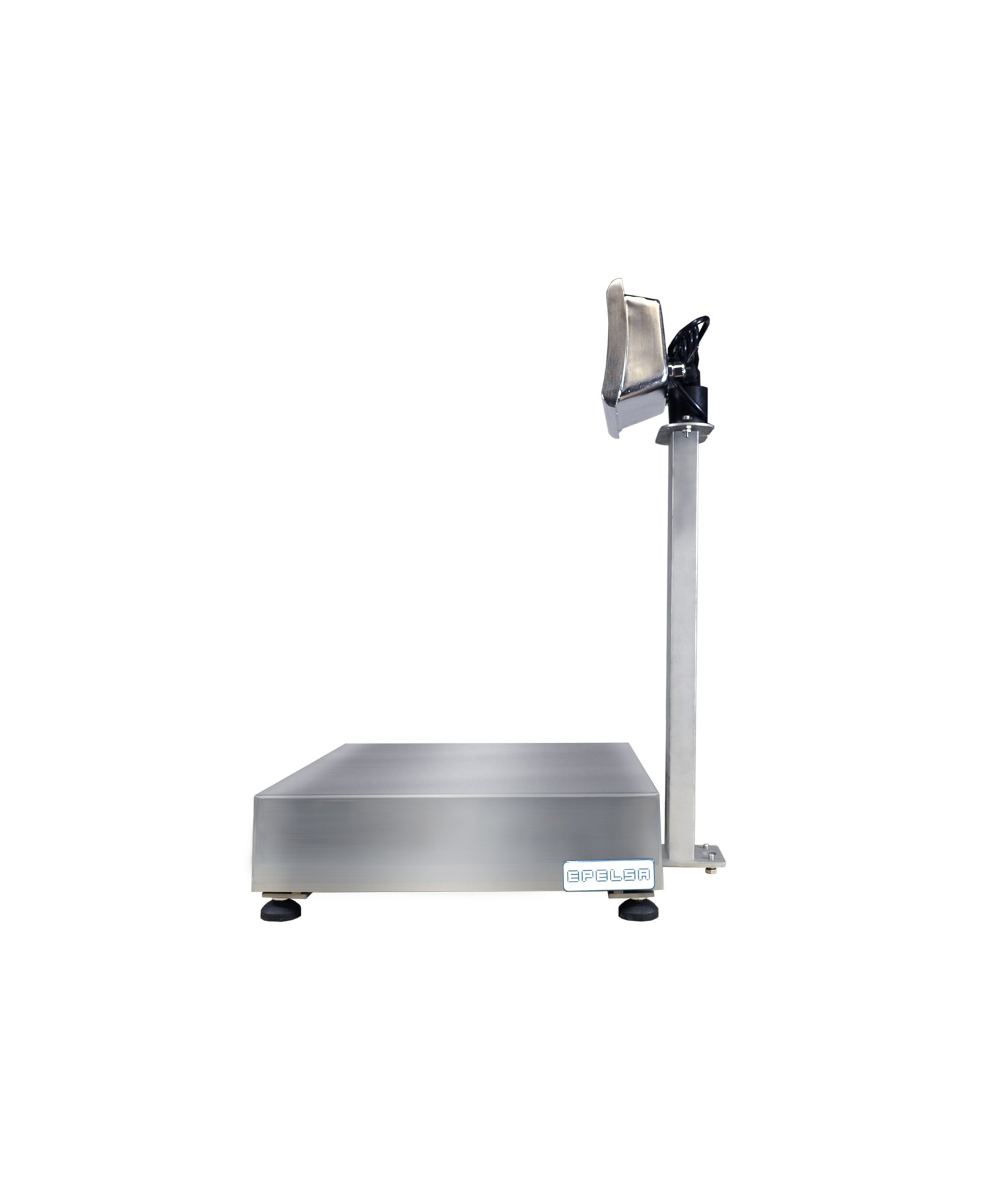

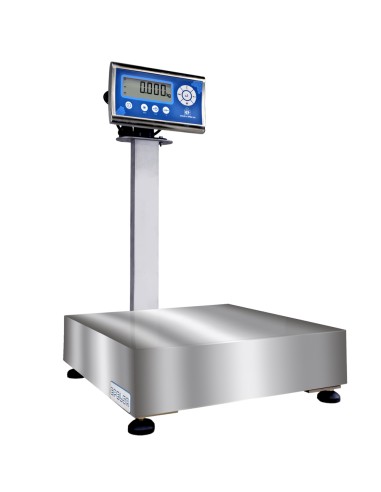

Features M30I Platform

• Single load cell countertop platform (300 x 300mm x 46mm).
• This platform is ideal for countertop work such as tare weighing, piece counting, +/- control, manual labelling, packaging, etc.
• Stainless steel structure composed of upper and lower cross (AISI-304).
• 4 adjustable feet allow for leveling and installation on floor or countertop
• Structure covered with a top cover in AISI-304 stainless steel with a matt polished finish.
• IP67 protection.
• Static overload protection.
• Capacities: 3 kg, 6 kg, 15 kg and 30 kg.
• Net weight: 4.8 kg.
