LMA-40 industrial set
LMA-40 industrial set
LMA-40 industrial set
LMA-40 industrial set

LMA-40 industrial set

00604500EN
Description:

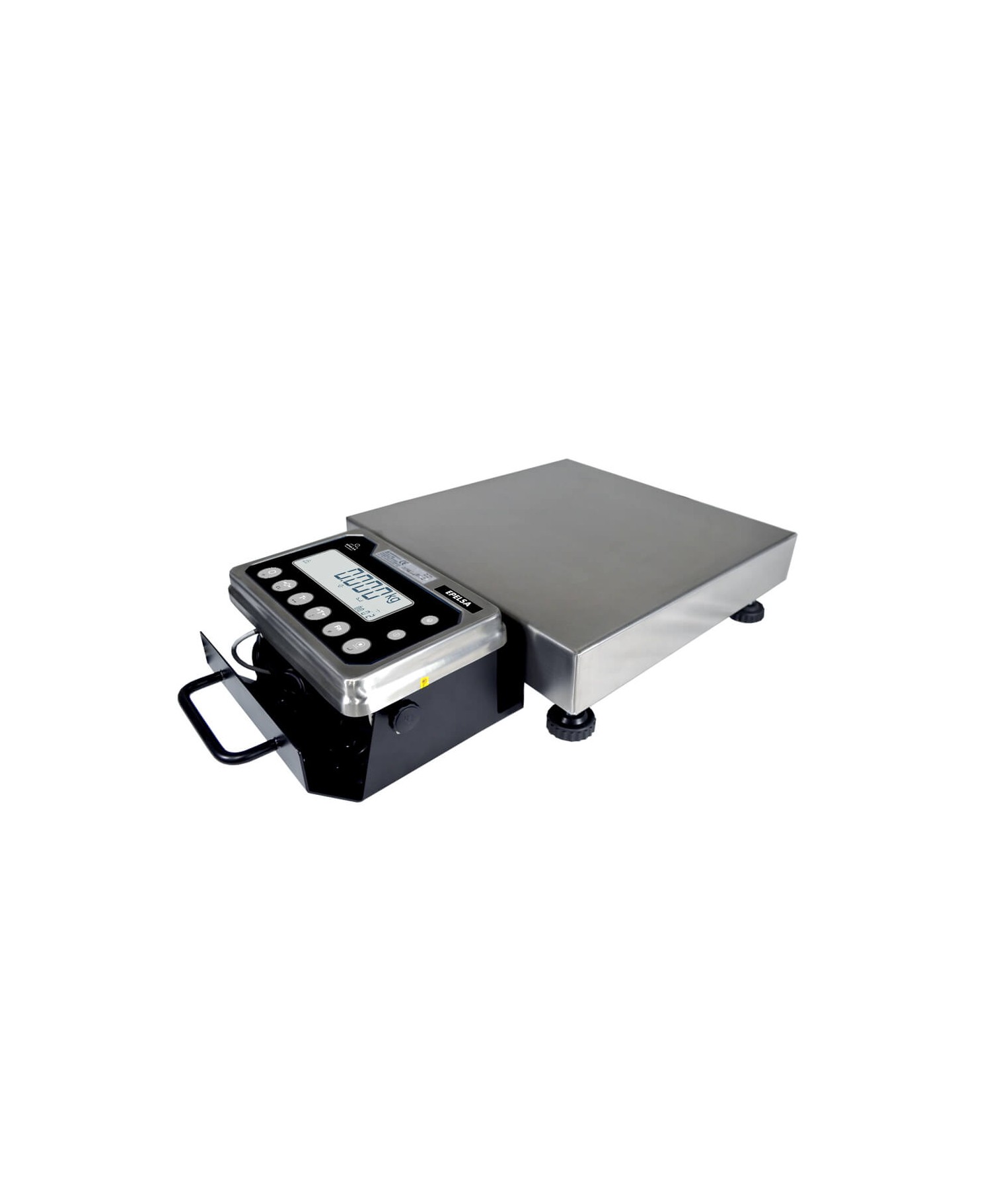

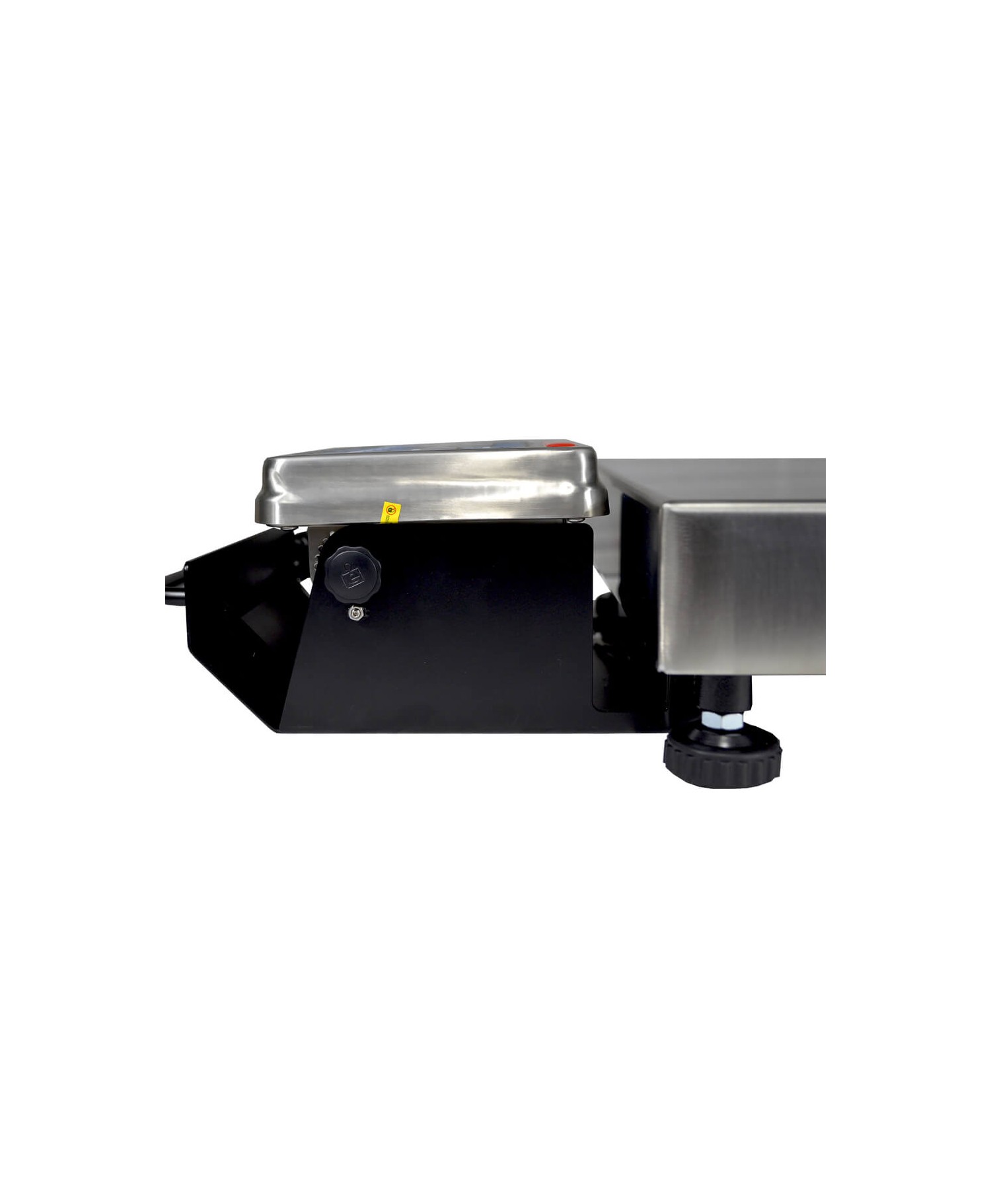

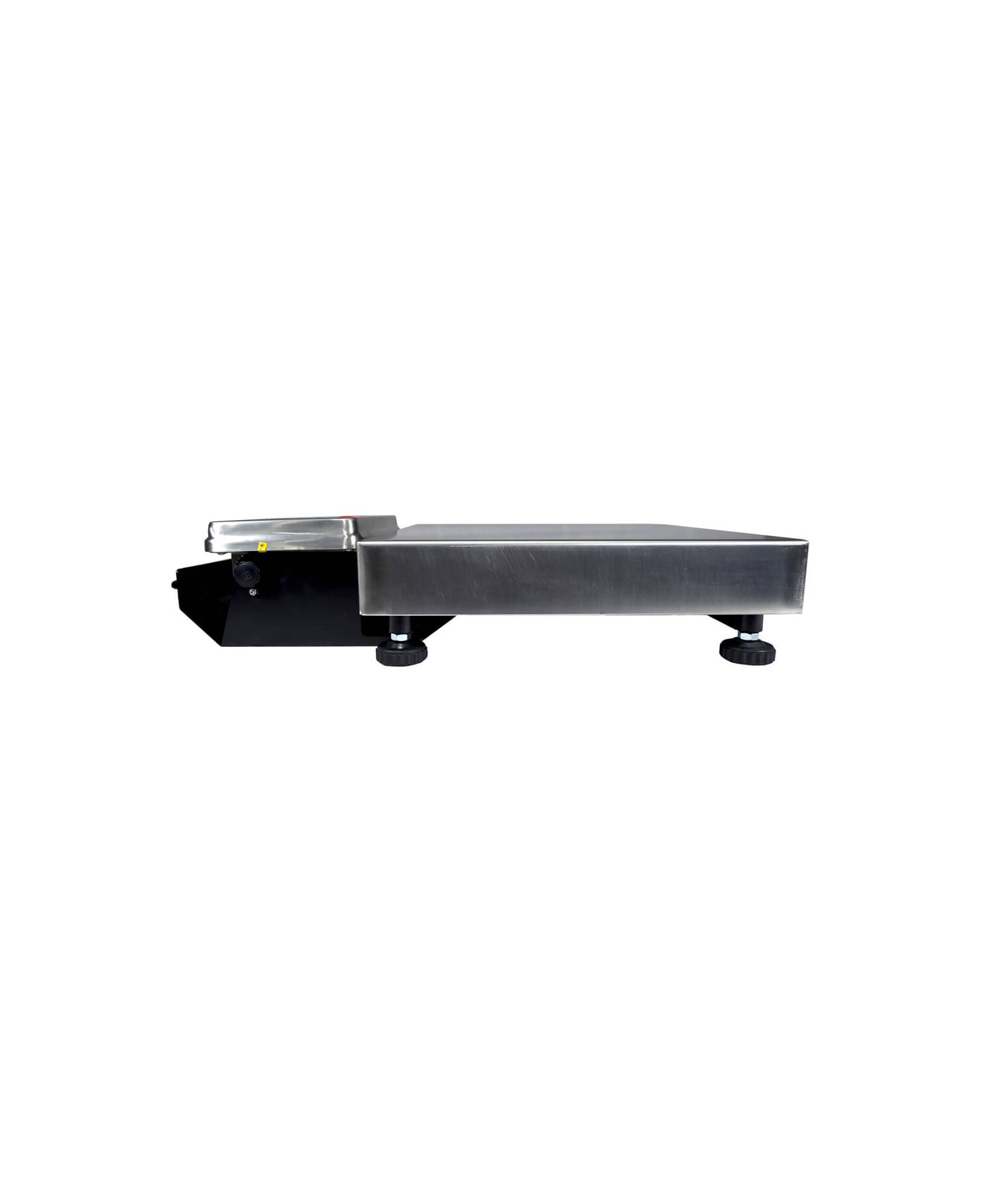

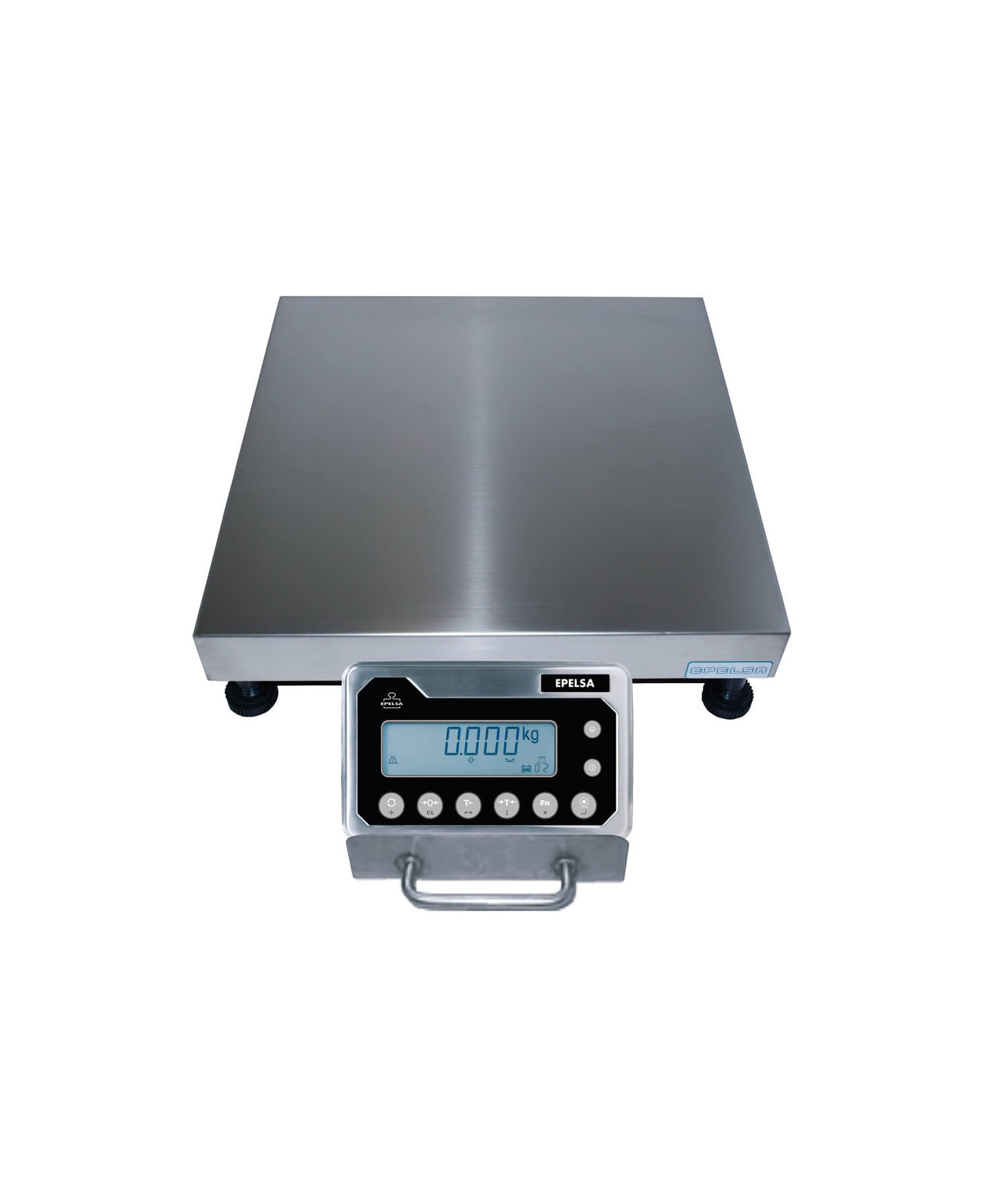

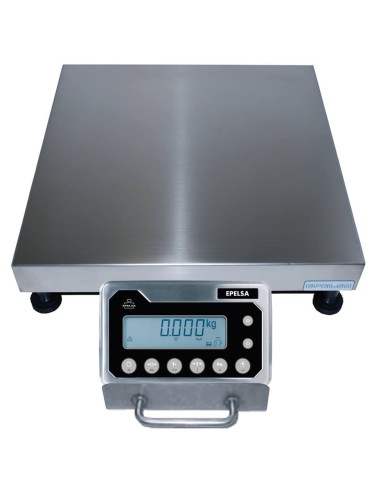

EPELSA weighing set consisting of an Orion indicator and an LMA-40 platform - Capacities: 15 kg, 30 kg, 50 kg and 150 kg.

Capacities
Dimensions


Features Orion Indicator
Stainless steel finish (matt polished) with IP-65 protection.
Connection of weighing and serial channels via watertight 15-way SUB-D connectors.
LED display: 7 digits, 25.4 mm high, backlit.
Low power consumption indicator (maximum: 8W).
Internal long-life battery (up to 250 hours), 3.7 V, 2,300 mAh (lithium-polymer).  Charging time: < 6 hours.
AC power supply: 100 to 240V (+10%, -15%) single-phase with earth connection.

Features LM Platform
Painted single load cell platform with stainless steel cover.
Dimensions: 400 x 400 x 90mm (without feet)
Stainless steel cover
Platform with black painted steel structure.
IP65 protection.
Height-adjustable feet with rubber feet
Screws and level support in stainless steel.
Load cells approved to 3000 divisions.
Static overload protection.
Capacities: 15 kg, 30 kg, 50 kg and 150 kg.
