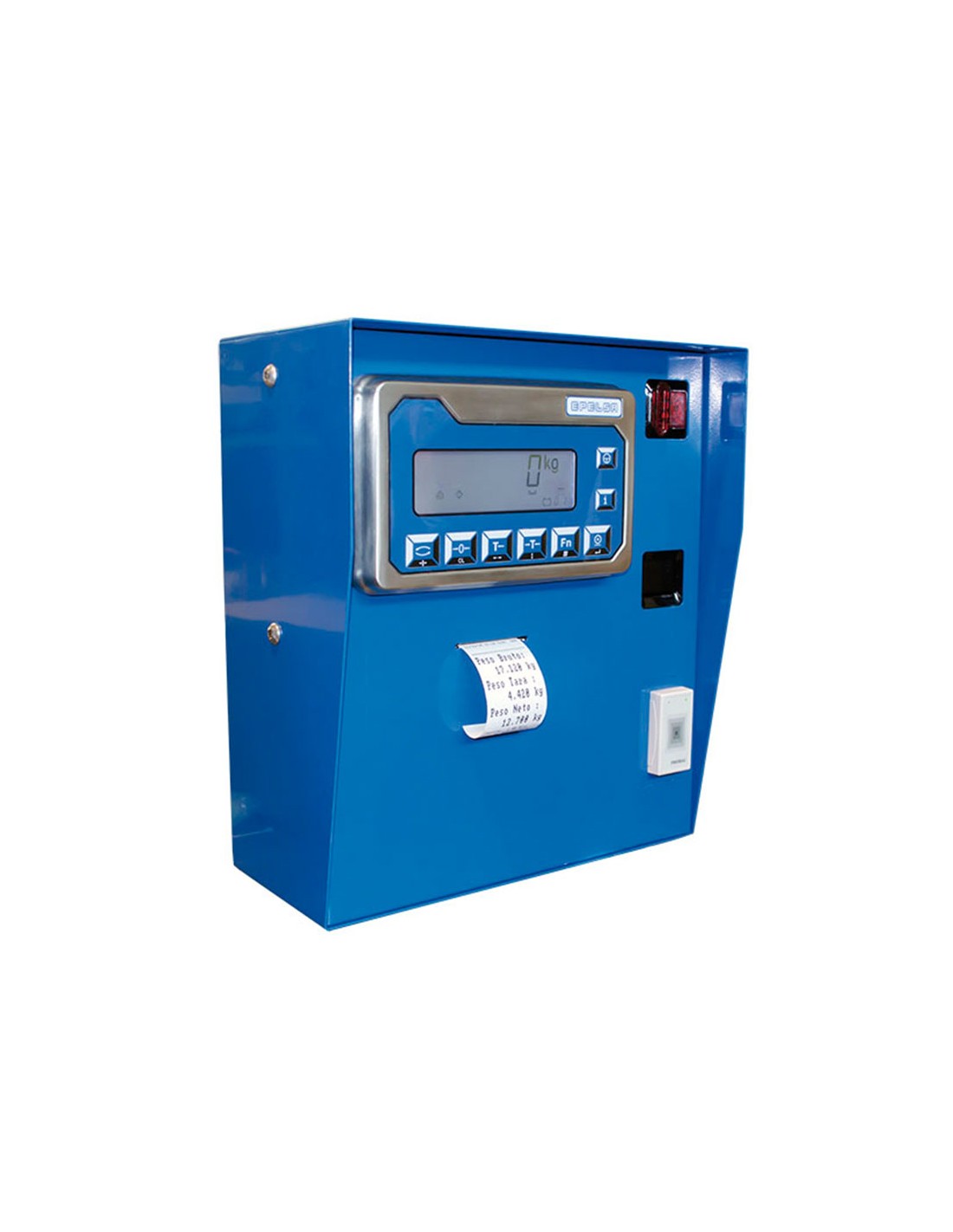

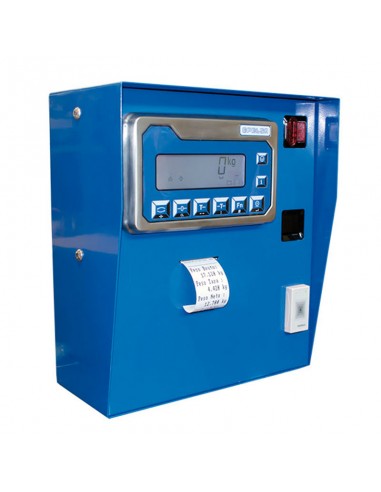

Equipment designed to be used as a self-service truck weigher, with the possibility of weighing with a coin machine or using RFID cards.
It incorporates a low power consumption weight indicator.
7-digit display, 25.4 mm high, backlight by LEDs.
Coin machine for Euros or tokens.
24-column thermal printer with cutter.
RS-422 serial channels, for connection to repeater, 1 Ethernet channel (RJ45 connector) for connection to computer.
Control of traffic lights or barriers.
Supports up to 100,000 display divisions (internal use).
Full calibration and adjustment of parameters, both internal and operational via keypad.
It incorporates a self-checking and self-correction programme, displaying the type of error or anomaly when it occurs.
Possibility of remote work connected to standard PC application for vehicle weighing management.
Keyboard with 7 keys.
AC power supply: 100 to 240V (+10%, -15%) single-phase with earth connection.
Includes non-volatile RAM for data backup.
Net weight: 21.5 kg.
